Features
Echo-Echo and Single-Echo modes for heavily corroded metals.
Multiple-Echo mode for the most accurate, through-coat measurements (as specified by Classification Societies).
Uses both single and twin crystal transducers.
Deep Coat function ignores coatings up to 0.8 in. (20 mm) thick.
“Hands-free operation”: wrist, waist belt and harness mountable.
MSI™ (Measurement Stability Indicator) verifies stable, reliable readings.
Simple to use menu.
Environmental sealing (water and dustproof) to IP67 – US MIL STD 810G
Highly ruggedized enclosure – shock and impact proof to US MIL STD 810G
One and two point calibration
Can be upgraded to 4+ or 6+ at an additional cost.
Three Versatile Measuring Modes
Multiple-Echo mode uses three (error-checked) back wall echoes to provide the most reliable and accurate remaining thickness measurements. Multiple echo automatically measures through coatings up to 0.8 in. (20 mm)
Echo-Echo mode works best for measuring heavily corroded metals through thin coatings of up to 0.04 in. thick, and is ideal for measuring painted metals with heavy back wall corrosion.
Single-Echo mode is ideal for measuring uncoated metals with heavy front and/or back-wall corrosion. This mode is also effective on a range of cast metals, plastics and composites.
Measurement Stability Indicator (MSI™)
Exclusive to Cygnus, MSI™ ensures that stable and reliable measurements are displayed in Echo‑Echo and Single-Echo modes.
Single Crystal Probes
Specifications
Measuring Modes:
Multiple-Echo using 3 echoes to ignore coatings up to 0.8 in. (20 mm) thick
Echo-Echo using 2 echoes to ignore coatings up to 0.04 in. (1 mm) thick
Single-Echo using 1 echo
Materials: Velocities from 0.0390 – 0.3543 in./us (1,000 – 9,000 m/s)
Accuracy:
±0.002 in. (±0.05 mm) – in Multiple-Echo measurement mode, when calibrated and measuring the same material as calibrated on
±0.004 in. (±0.1 mm) or 0.1% of thickness measurement whichever is the greatest – in Single-Echo & Echo-Echo measurement modes, when calibrated and measuring the same material as calibrated on
Resolution:
Multiple-Echo mode – 0.005 in. (0.1 mm) or 0.002 in. (0.05 mm)
Single-Echo and Echo-Echo modes – 0.005 in. (0.01 mm) or 0.001 in. (0.01 mm)
Transducer Options: Single crystal transducers and twin crystal transducers
Measurement Range in Steel: 0.031 – 10 in. (0.8 – 250 mm) depending on selected transducer and configuration, material and temperature
Connector: 2 x Lemo 00
Power: 3 x AA/R6 batteries
Battery Life: Approx. 10 hours continuous measurement
Electronics: Dual channel pulser
Display:
End-mounted rotatable LCD: 25.58 x 6.38 mm (for measurements)
2.4 in. QVGA LCD: 47 x 37 mm (for gauge setup only)
Size: 3.3 x 5.1 x 1.4 in. (84 x 130 x 35 mm)
Weight: 10.5 oz. (300 g) (inc. batteries)
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Environmental Rating:
IP67
MIL STD 810G Method 501.6 (high temp 131°F (+55°C))
MIL STD 810G Method 502.6 (low temp -4°F (-20°C))
MIL STD 810G Method 507.6 (humidity 95%)
MIL STD 810G Method 512.6 (immersion 1 m for 30 mins)
Shock and Impact:
MIL STD 810G Method 514.7 (vibration)
MIL STD 810G Method 516.7 (shock 20g)
MIL STD 810G Method 516.7 (transit drop 1.22 m)
Standards: Designed for EN 15317
Compliance: CE, UKCA, RoHS
Warranty: 3 years on gauge and 6 months on transducer
Basic Gauge Kit
Cygnus 2+ gauge
Operating manual
Neck strap
Accessory pouch, containing; 3 x AA batteries, blue couplant gel
Kit supplied with Single Element Transducer
Ultrasonic transducer
Molded transducer cable
1/2 in. (15 mm) steel test block
Spare membranes
Membrane key
Membrane couplant
Kit supplied with Twin Element Transducer
Ultrasonic transducer
Molded transducer cable
Variety of Cygnus INOX Transducer

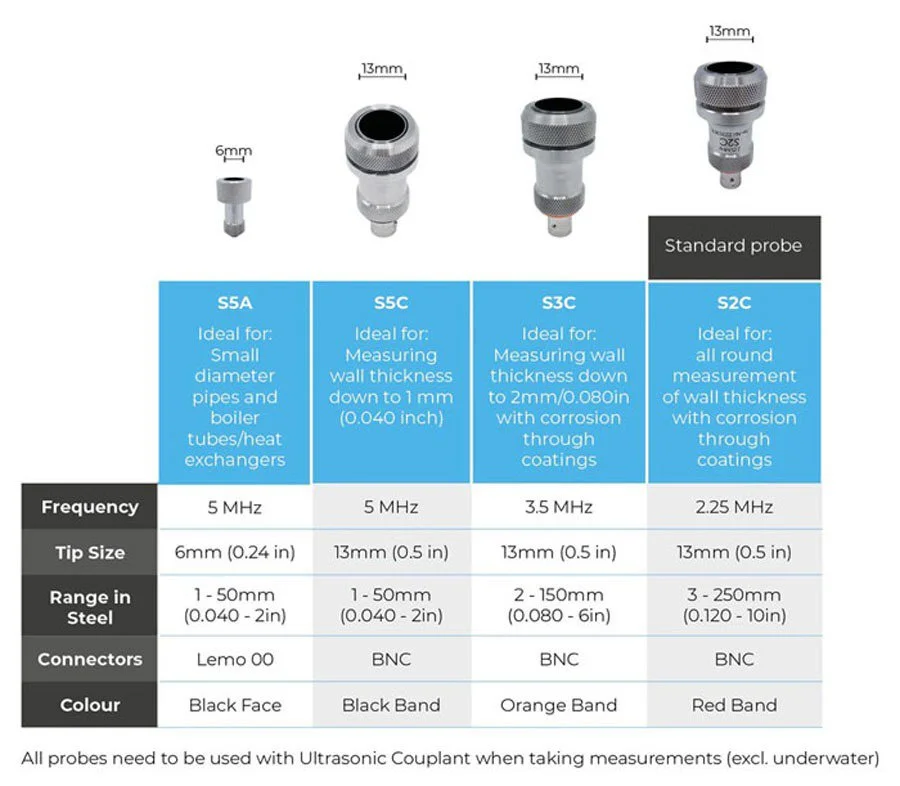

Stainless steel SINGLE CRYSTAL transducers, used in multiple-echo mode, include replaceable membranes for long life, require no zeroing and have a high linear accuracy.

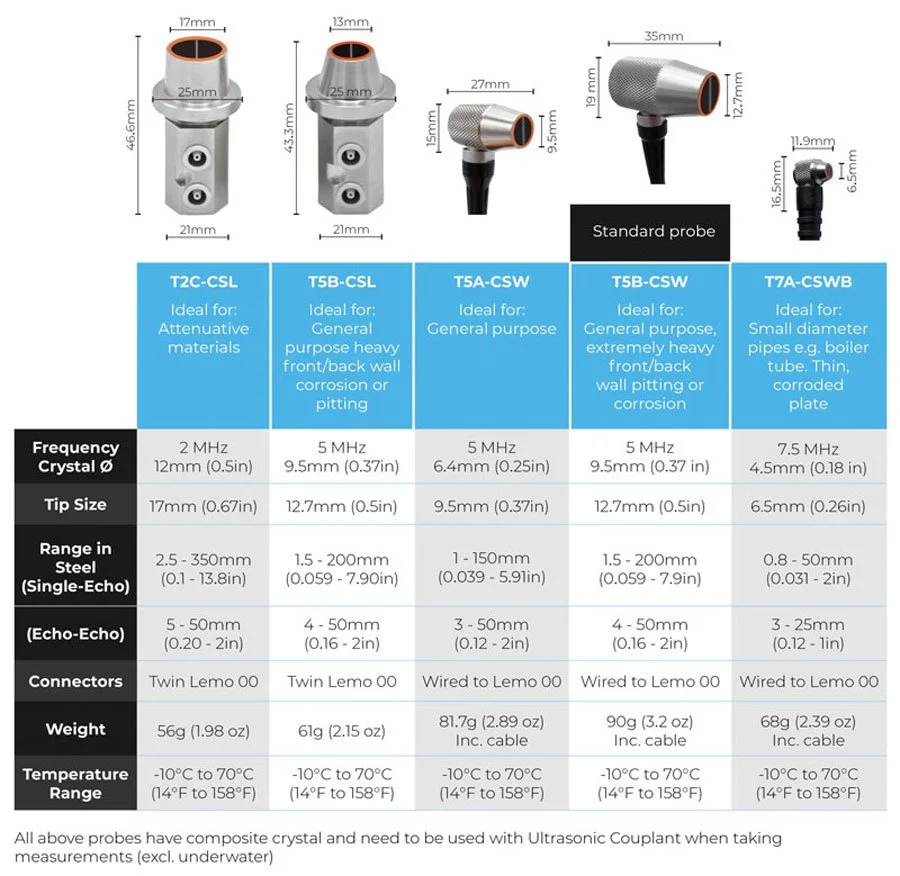

Stainless steel TWIN CRYSTAL transducers, used in echo-echo and single-echo modes, have improved measurability on extreme back wall corrosion and pitting.
Transducers for use with the Cygnus 2+, 4, 4+ and 6+ gauges are fitted with a BNC or Lemo 00 connector.
