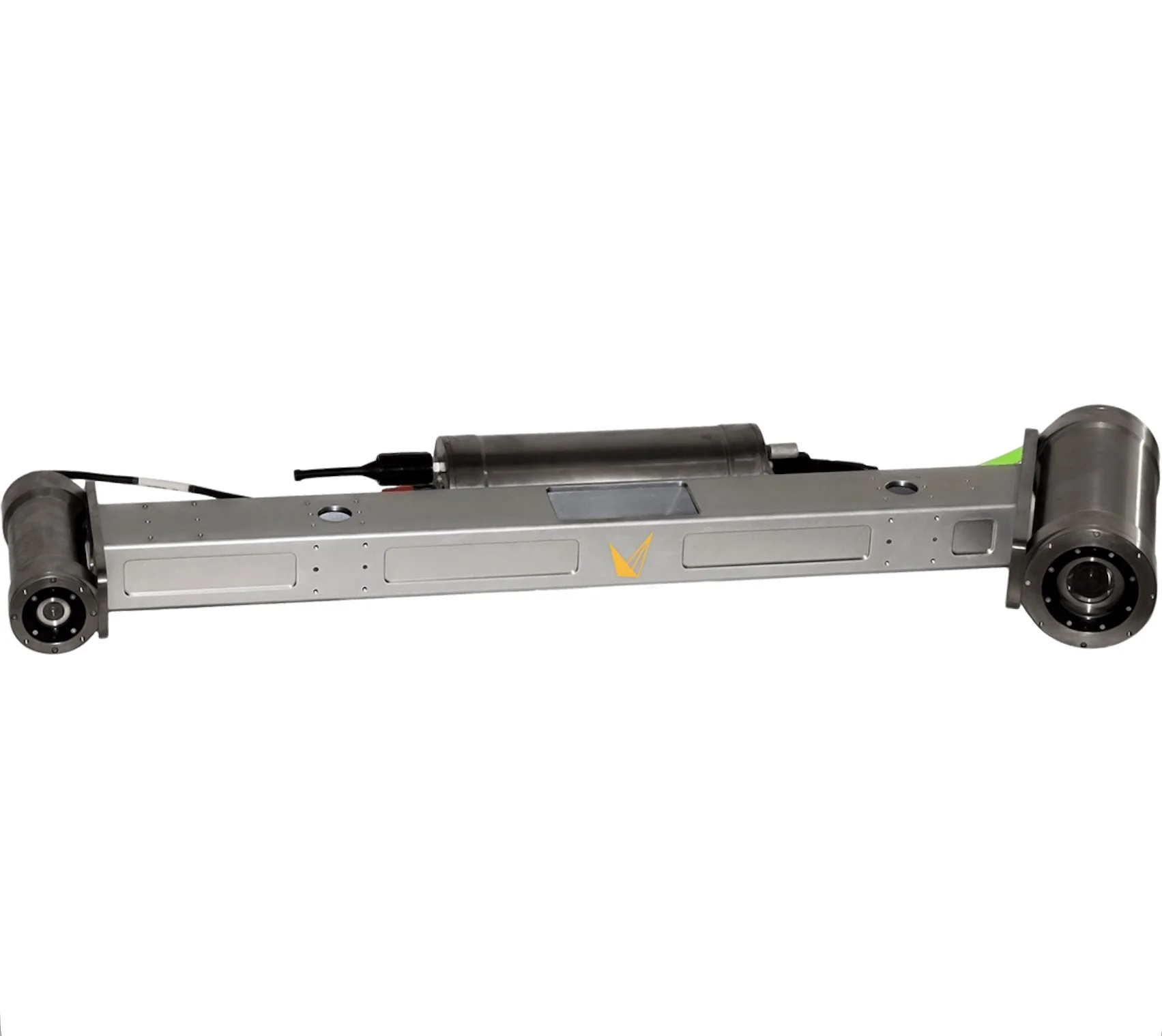

Our longest range subsea laser scanner designed for 3D modelling from dynamic vehicle platforms.
Actively Cooled Sensors - In order to reduce noise and maximize range, the sensor is actively cooled to maintain a 5°C temperature
High Dynamic Range Data - 16-bit dynamic range laser data enables you to capture both high and low brightness targets
Complete Coverage - Maximize coverage using the 50° laser line and accurate PPS time sync to vehicle navigation data
4000m or 6000m depth rated options
Vehicle navigation integration for dynamic survey
3D point clouds are generated in real-time
1.5m-15m scan range
Actively cooled sensors
Custom Integrations
Large AUVs

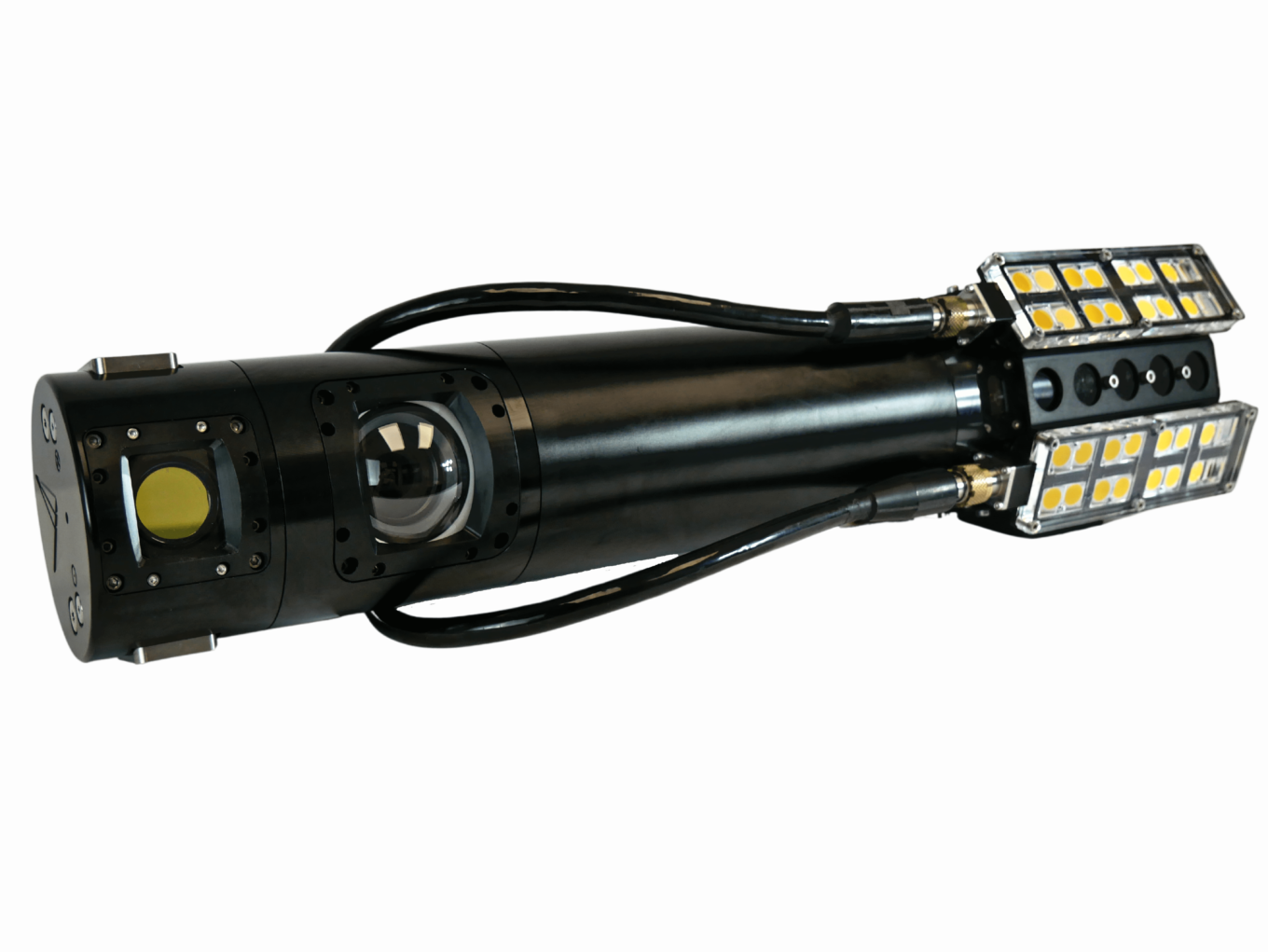

A dynamic laser scanner, with an optional integrated stills camera, made for integration into small vehicles.
For Small Vehicles - The Insight Micro is a compact dynamic laser scanner designed for use on smaller subsea vehicles
Low Power Draw - Small and power-efficient electronics enable long-duration laser scanning missions using less than 50 watts
Simplified Integration - Onboard storage, API, and cable-free design allows for simplified integration into subsea vehicles
INSIGHT MICRO
1000m or 4000m depth rating
Dynamic scanning with vehicle navigation integration
3D point clouds are rendered in real-time
Optional integrated imaging system
0.7m - 5.0m (SR) | 1.0m - 7.0m (XR) scan range
Custom Integrations

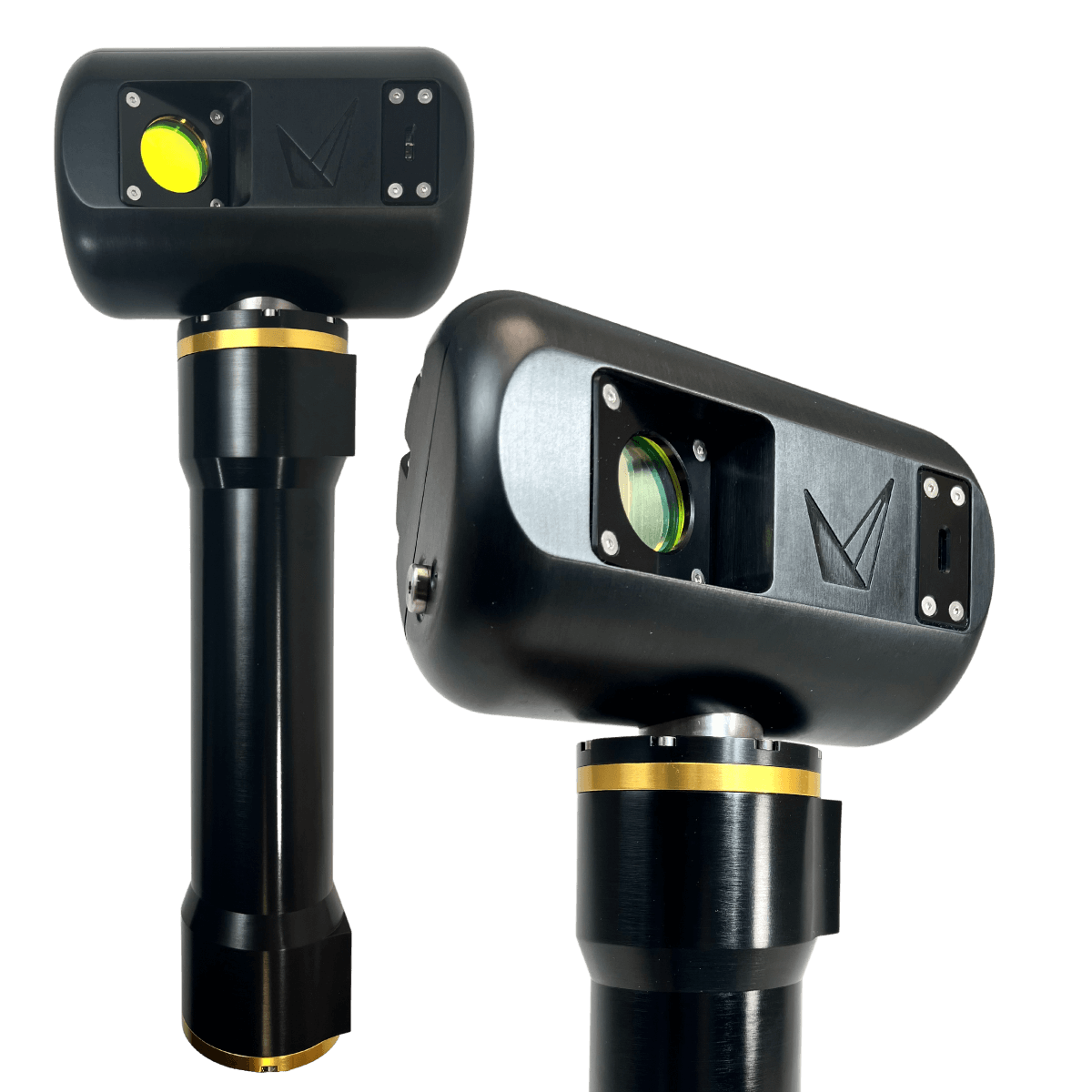

Underwater Laser Scanner
Extreme Data Density - The actuator’s high angular resolution enables sub-millimeter resolution both along and across laser profiles.
High Speed Scanning Mode - Ovality, defect, corrosion detection, and pipeline condition assessment at higher speeds and greater resolution than any traditional survey method.
Operation in Air or Water - Factory calibration enables use in both water and air, accounting for the medium’s specific index of refraction.
Capture incredibly detailed 3D data, with continuous 360° scanning, in confined underwater spaces without any external aiding sensors.
1000m depth rating
Integrated precision actuator
3D point clouds are rendered in real-time
Scan range 0.13m - 1m or 0.36m - 2.5m (XR)
ViewLS software for real-time control and data processing
Pipe Crawlers
Robotic Manipulators
Flume Tanks
Supplied Actuator
Centralizer/Custom Frame

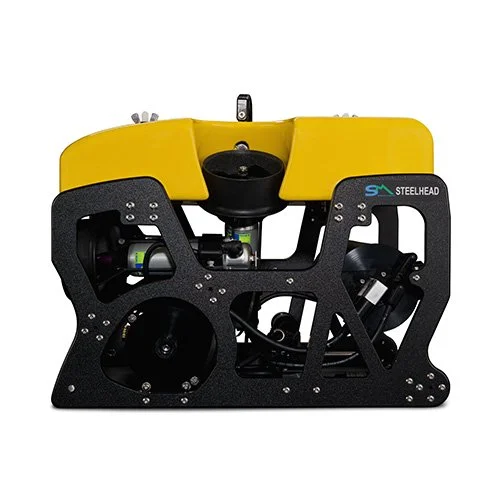

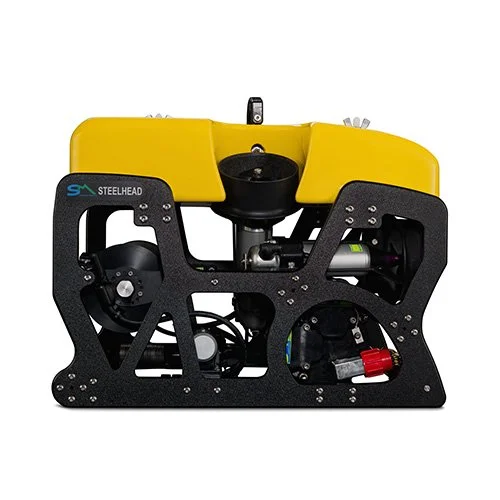

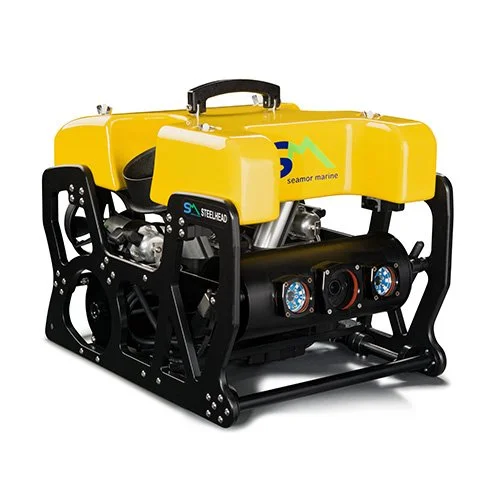

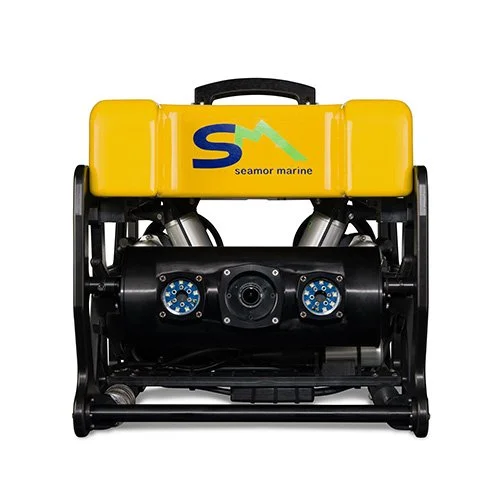

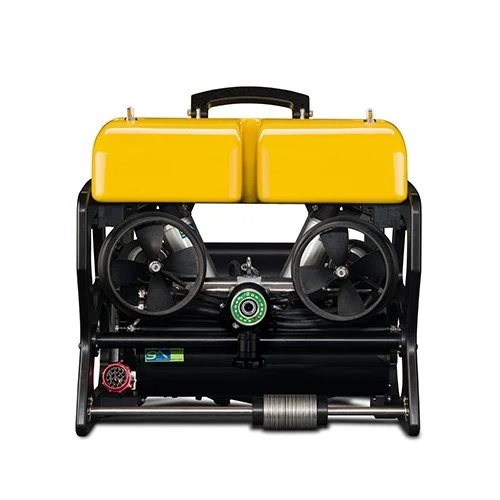

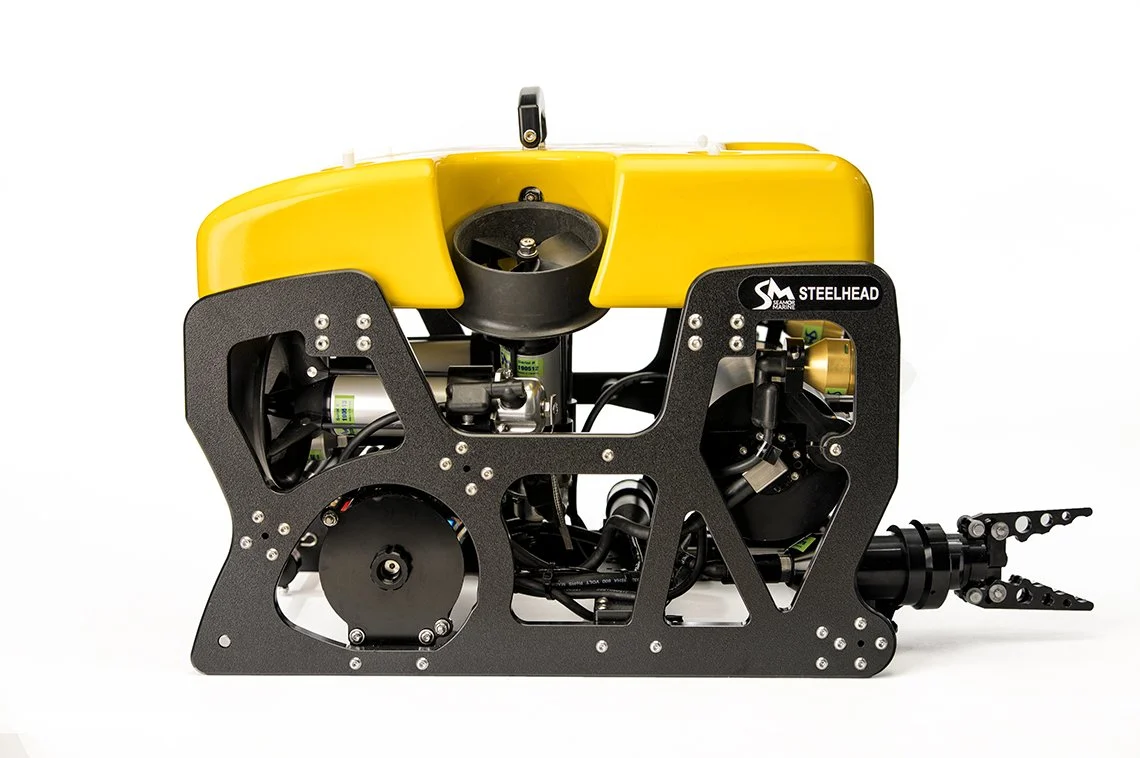

The Steelhead inspection-class ROV is a portable, lightweight and stable underwater system that is easily operated through intuitive flight controls. Its small profile allows this vehicle to inspect confined spaces and be easily stowed.
The compact Steelhead is easily deployed and recovered from small vessels and docks – no need for hoists or cranes. A standard definition NTSC/PAL camera, optimized for lowlight conditions provides the ROV operator with quality video. “Out of the box” features include an integrated controller and LCD monitor module with auto depth, auto heading, a digital video recorder and much more.
Intuitive controller
Broadcast-quality colour, zoom camera
Variable speed & directional ROV control

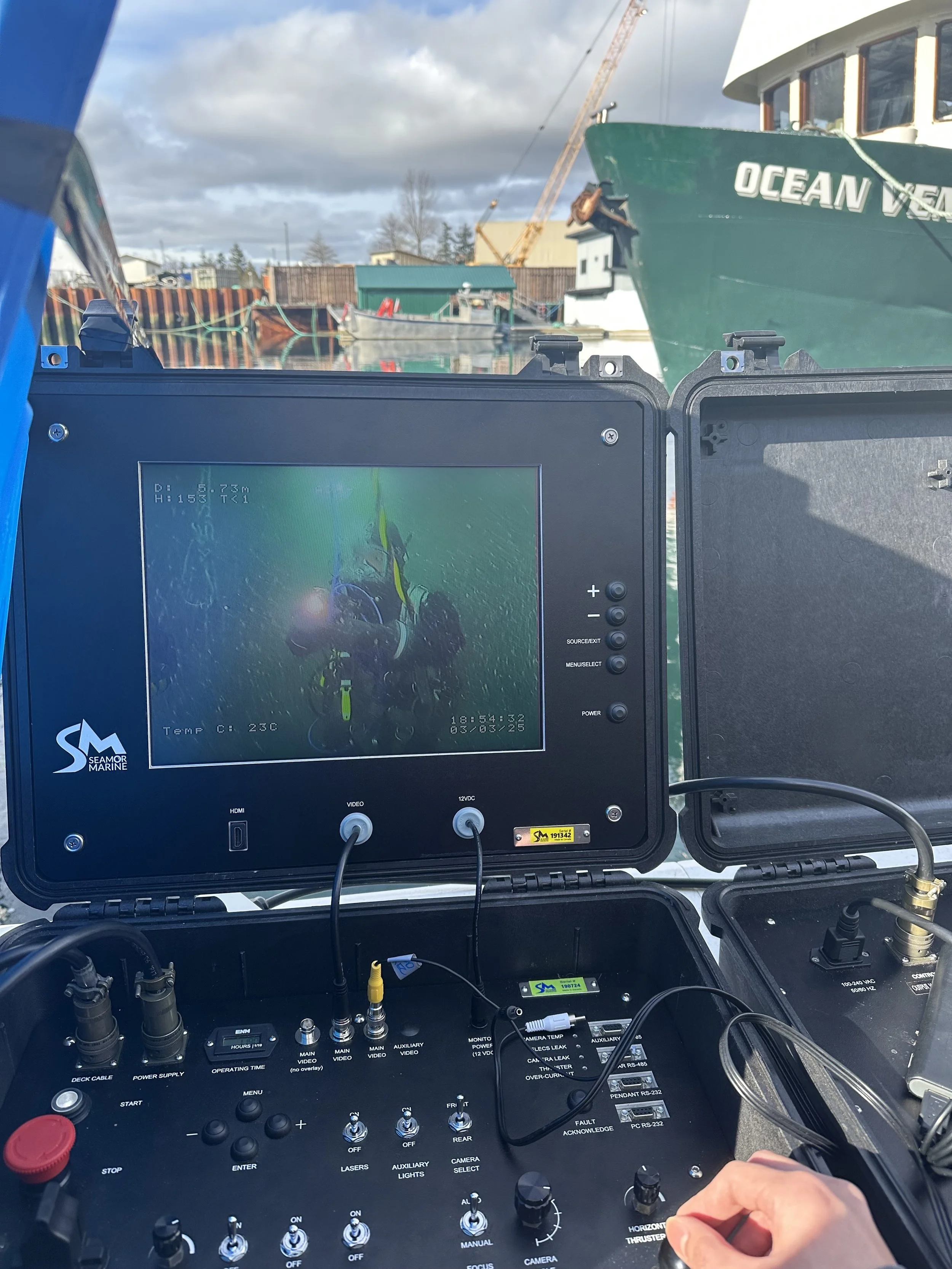

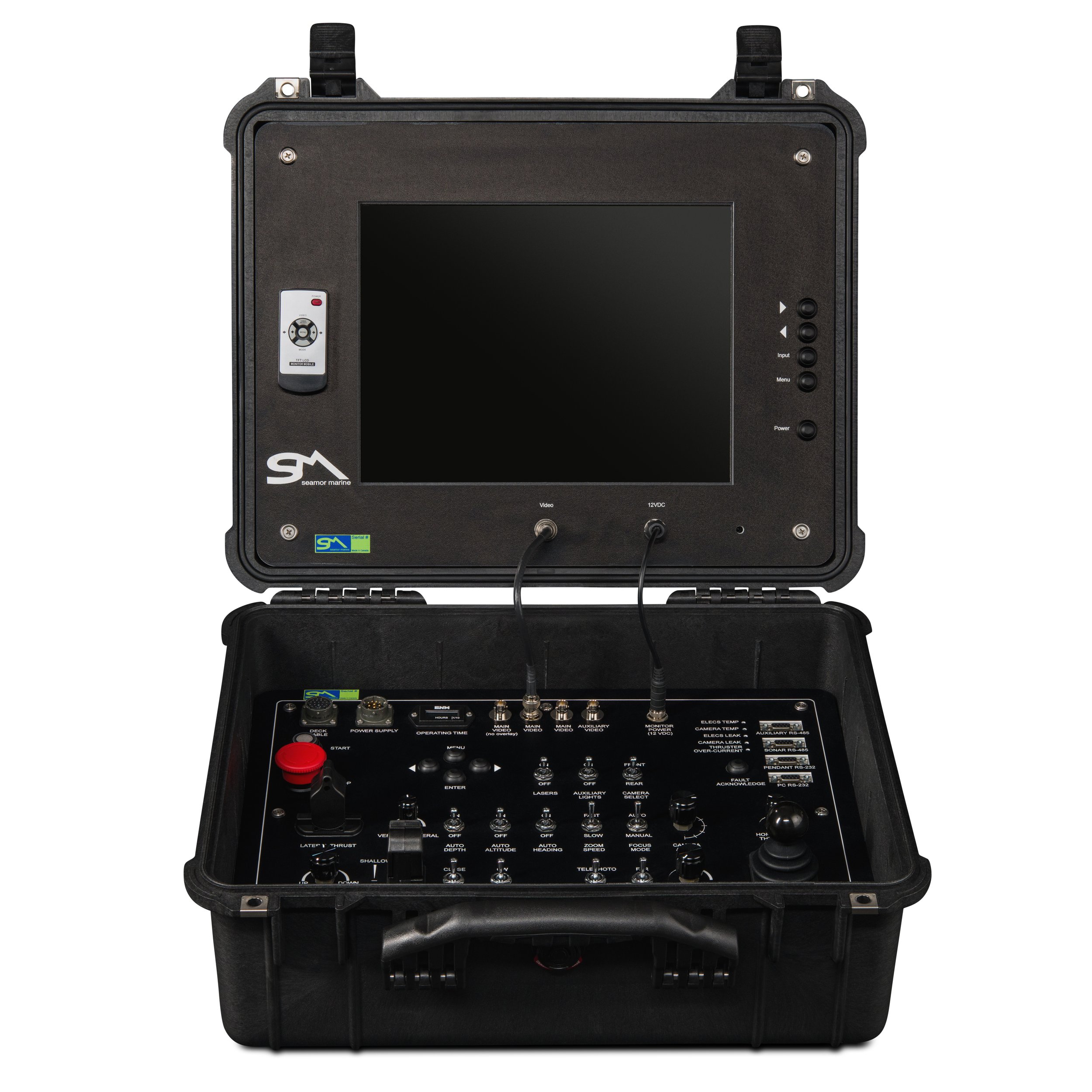

Integrated controller with LCD monitor
Digital Video Recorder (DVR)
Manual & automatic camera focus control
Depth-rated to 300 m (1000 ft)
Auto depth, auto heading functions
Four (4) powerful thrusters
Leak detection warning system
Tether-launchable

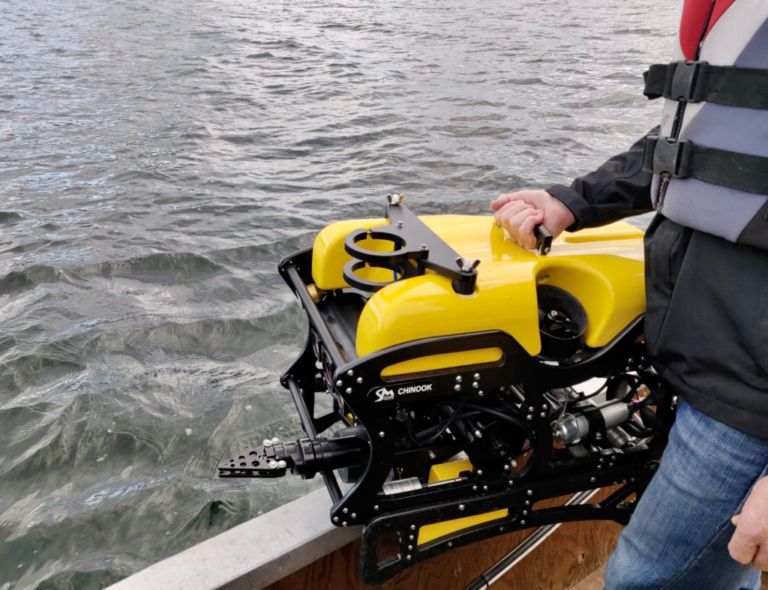

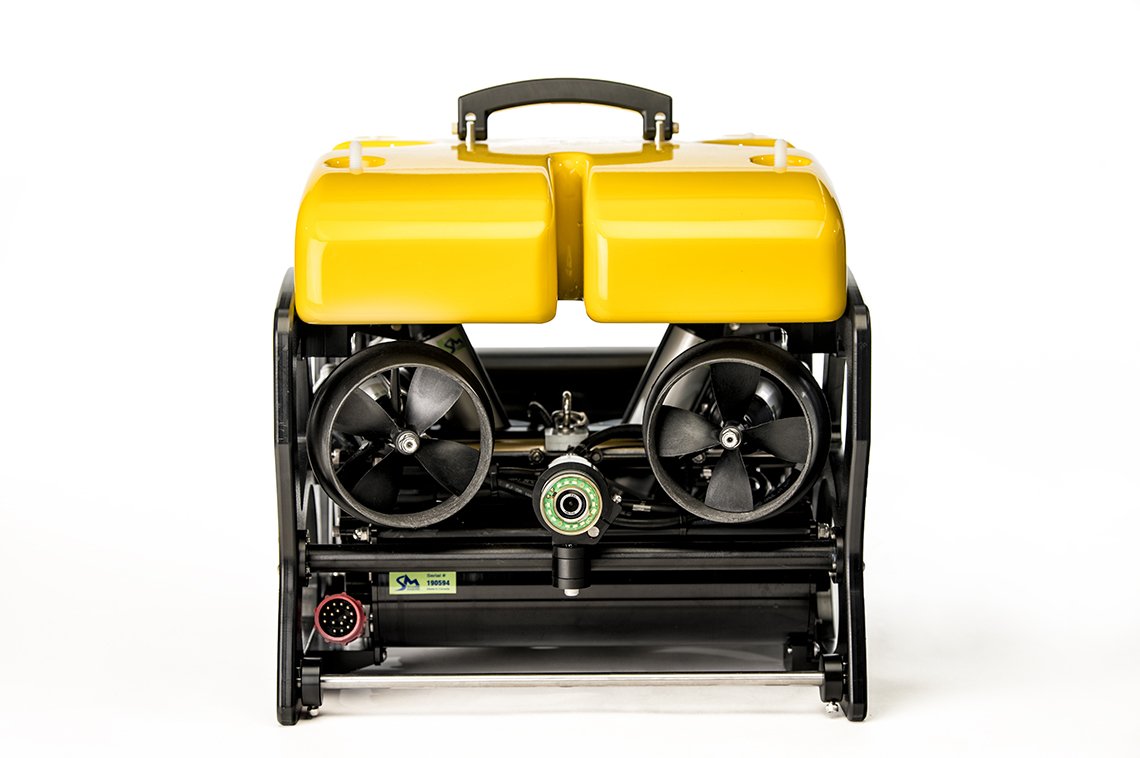

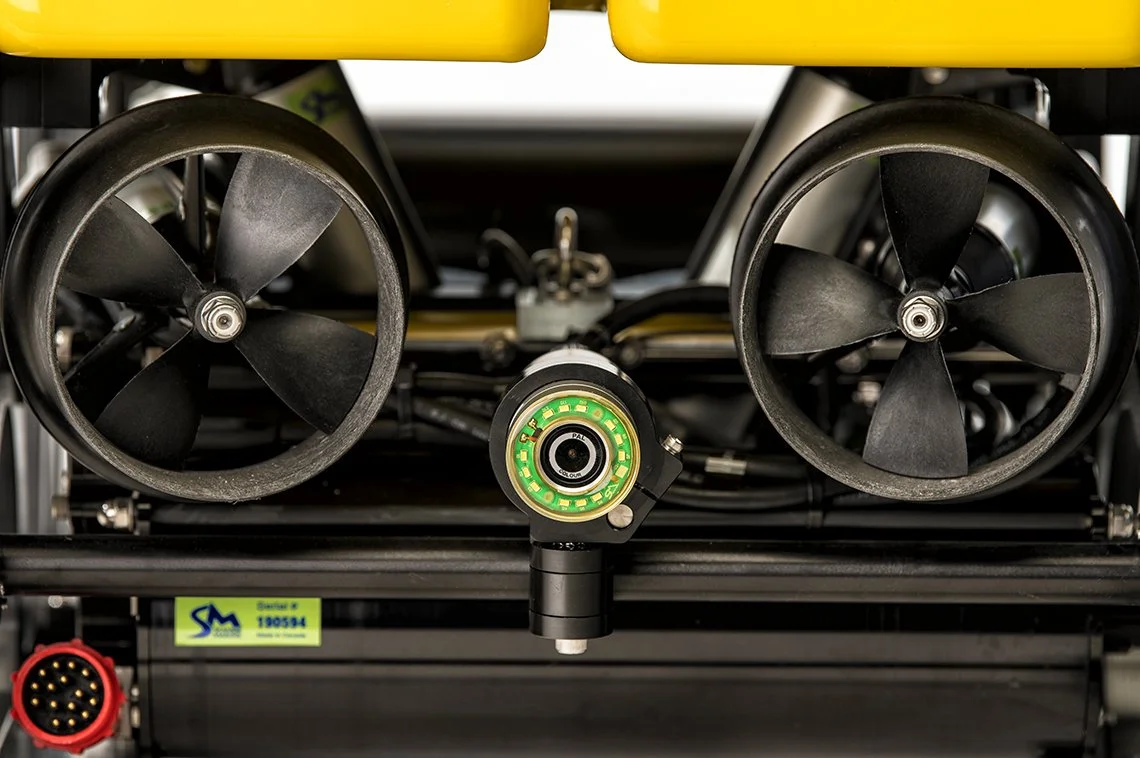

The Chinook is an industrial grade inspection ROV with a wide range of capabilities. Explore depths up to 300 m (1,000′) with the standard vehicle or 600 m (2,000′) with the deep water version.
A true workhorse, the Chinook offers a stable platform yet remains compact. With its small profile, the Chinook can operate in tight places and is easily stowed when not in use. Multiple handles and frame cross members allow two people to handle this ROV with ease.
For greater versatility, customize your Chinook by adding accessories such as extra thrusters, navigational searching aids, manipulators, tool skids and more.
Intuitive controller
High-resolution colour, zoom camera
Variable speed & directional ROV control
Integrated controller with LCD monitor
Digital Video Recorder (DVR)
Manual & automatic camera focus control
Depth-rated to 300 m (1000′) or 600 m (2,000′) with deep-water model
Up to six (6) powerful thrusters
Auto depth, auto heading functions
Leak detection warning system
Tether-launchable

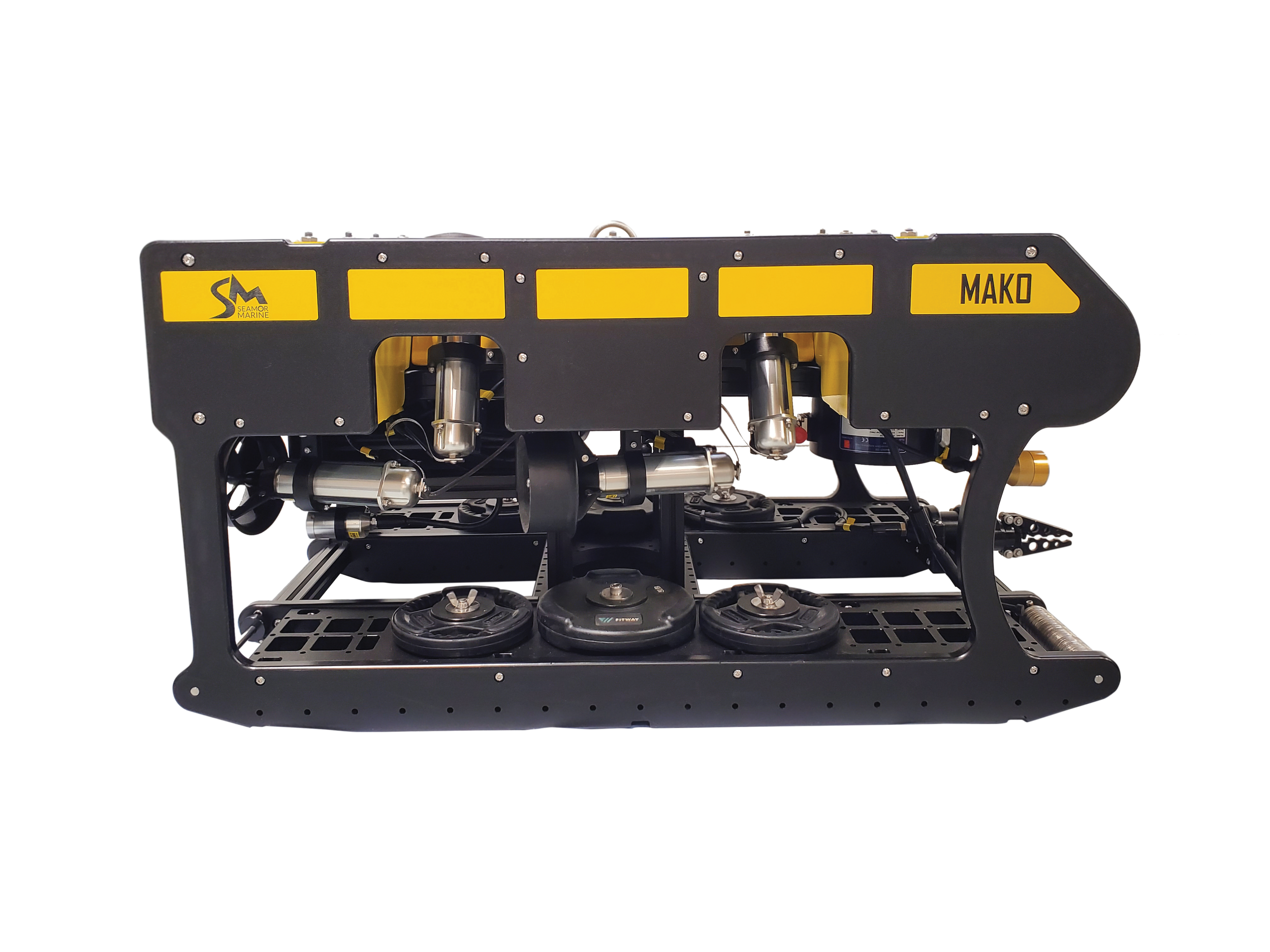

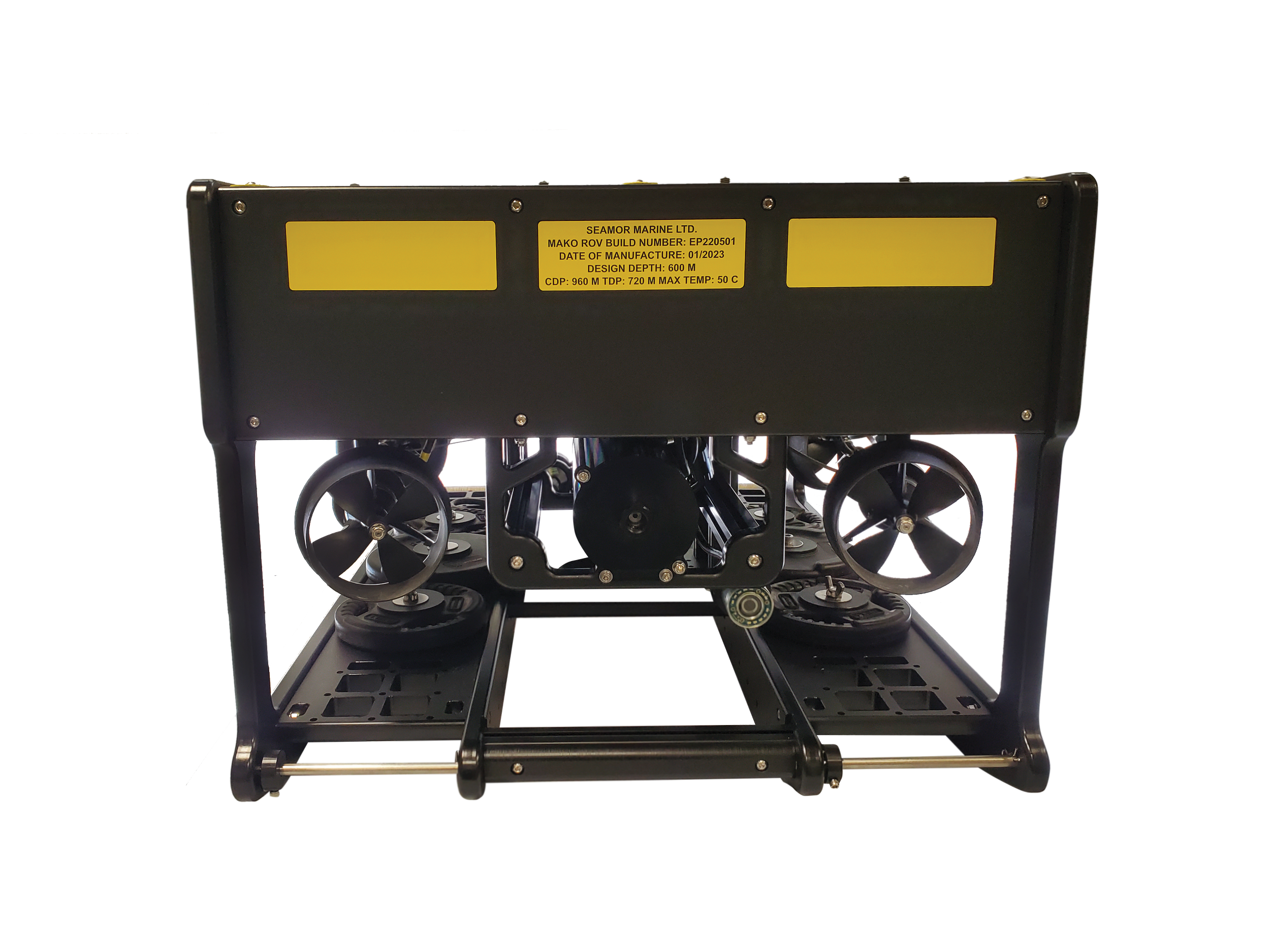

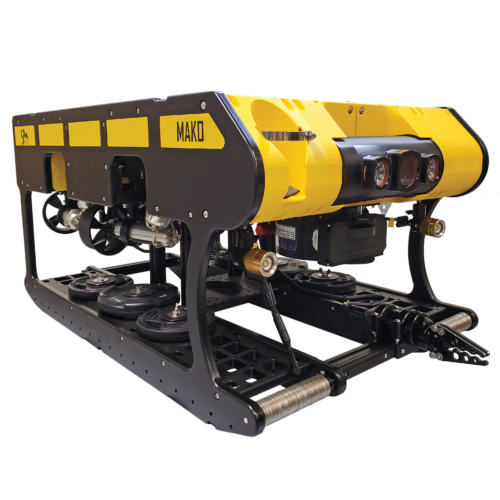

The Mako is SEAMOR Marine’s newest ROV. With a large open frame design and versatile mounting options, this vehicle can carry a variety of accessories and has the power capacity to run them all at once.
The Mako’s payload (14 kg standard, upgradable to 22.5 kg) allows users to install heavy instrumentation, including multi-beam imaging sonars. Users can easily mount and position accessories without any special tools. The ample space in the accessory bay also improves flow-through, which ensures maximum thruster efficiency, making it easy to fly the Mako no matter the payload.
The Mako comes standard with eight (8) SEAMOR- designed thrusters; four (4) of these are vertical thrusters that provide a more stable flight. We have arranged the Mako’s four (4) horizontal thrusters to maximize forward thrust.
Heavy payload: 14 kg (30 lb) standard; upgradeable to 22.5 kg (50 lb)
Intuitive controller
High-quality colour, zoom camera – HD-SDI option with 1080p uncompressed
Variable speed & directional ROV control
Integrated controller with LCD monitor
8 powerful, efficient thrusters
Digital Video Recorder (DVR)
Manual & automatic camera focus control
Depth-rated to 300 m (1,000 ft) or 600 m (2,000 ft) with deep-water model
Auto depth, auto heading functions
Leak detection warning system

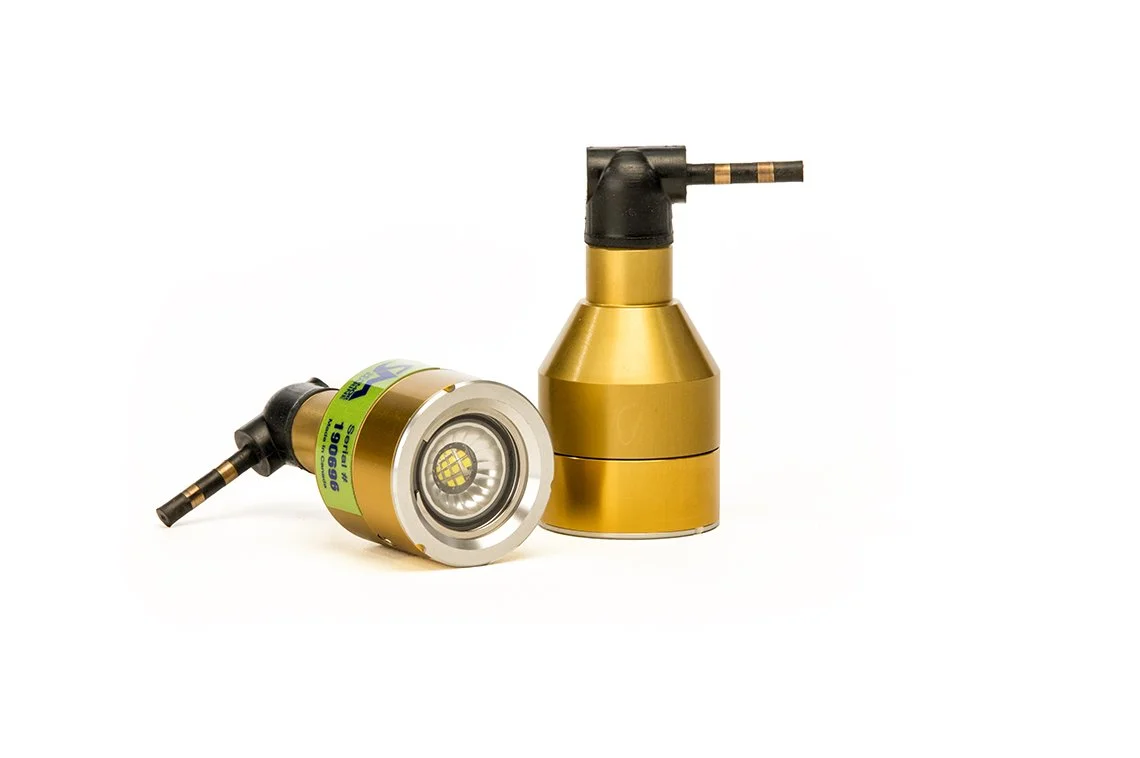

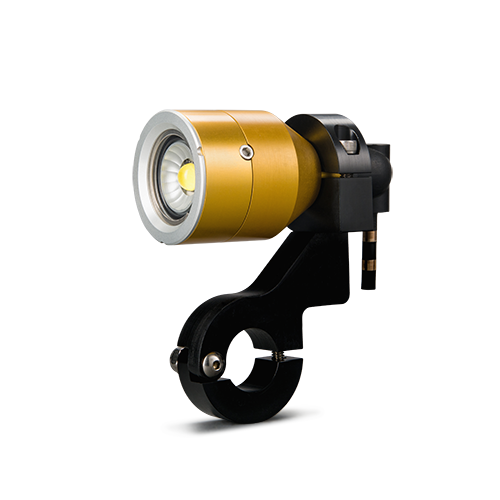

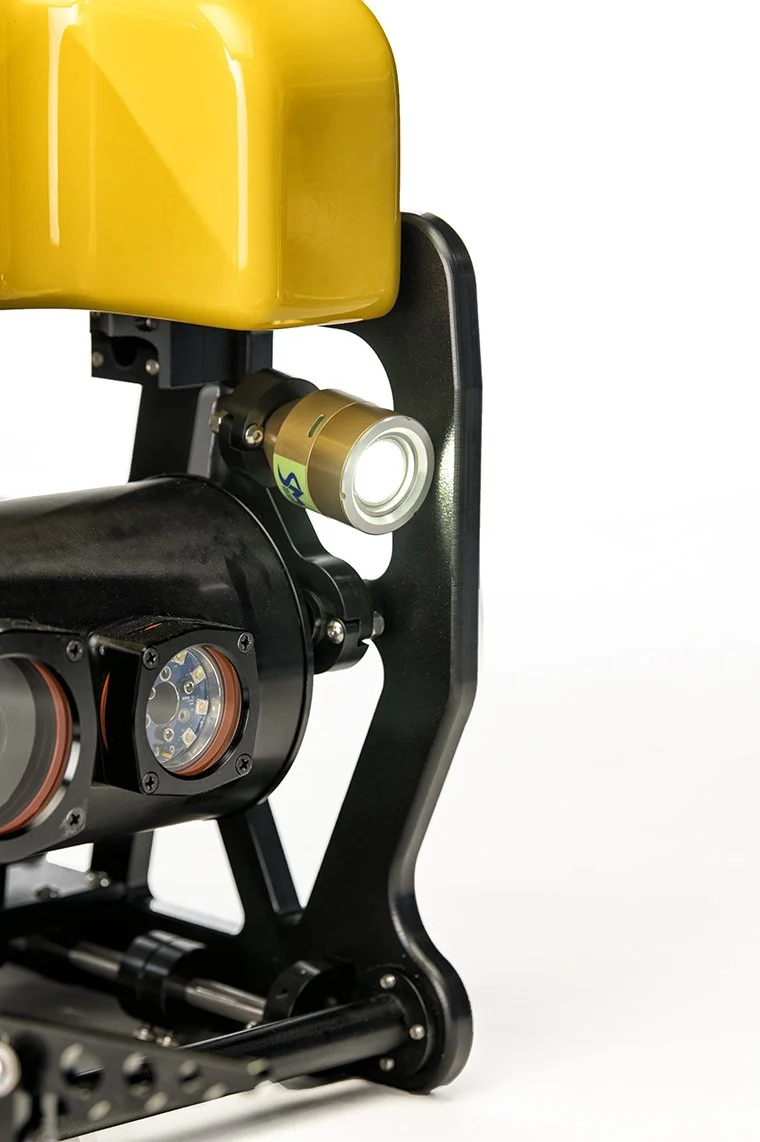

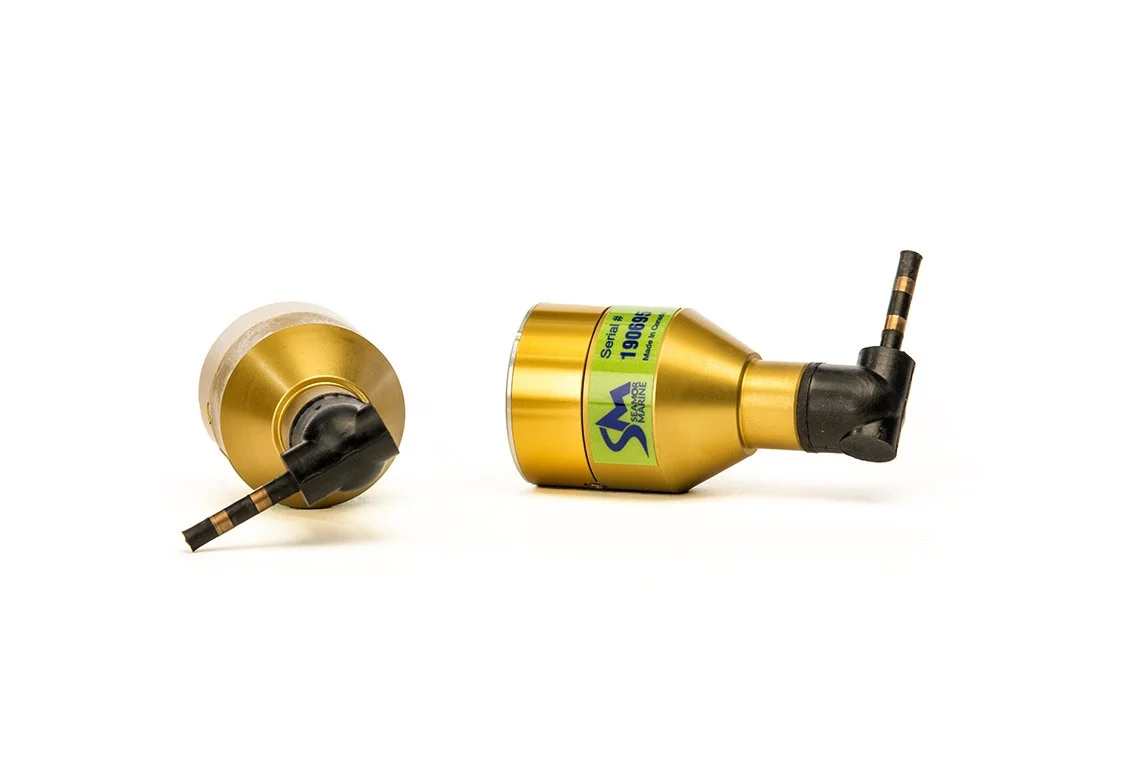

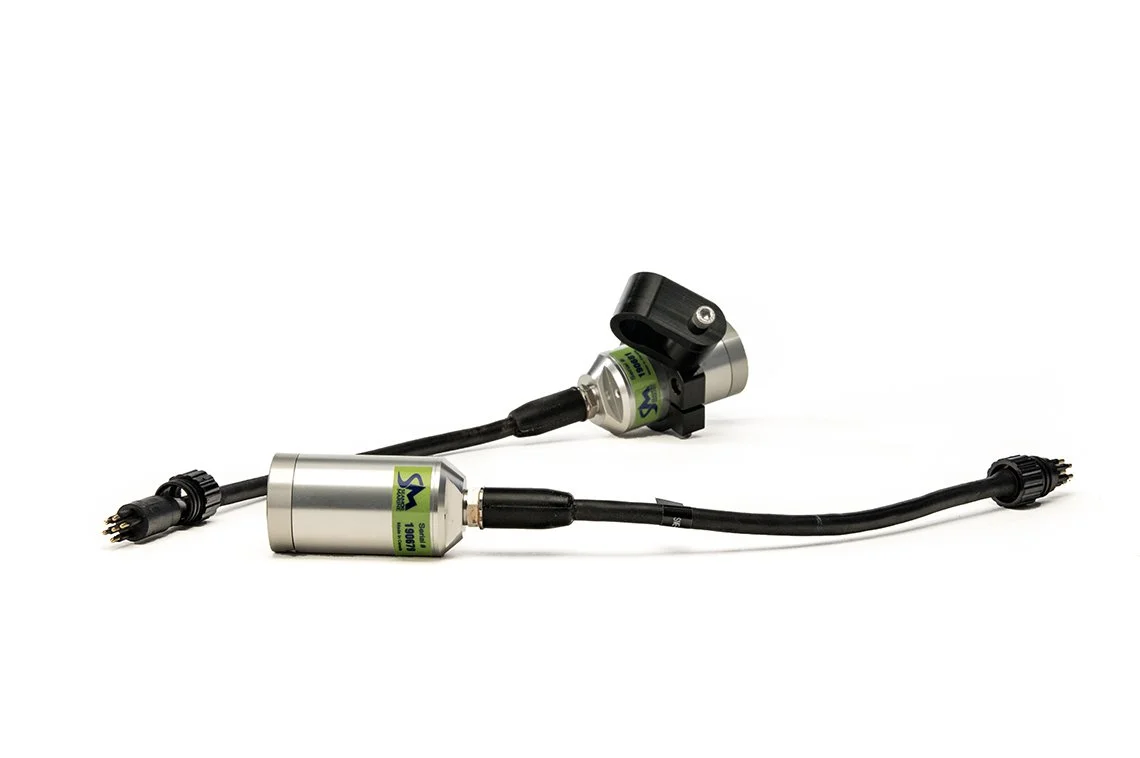

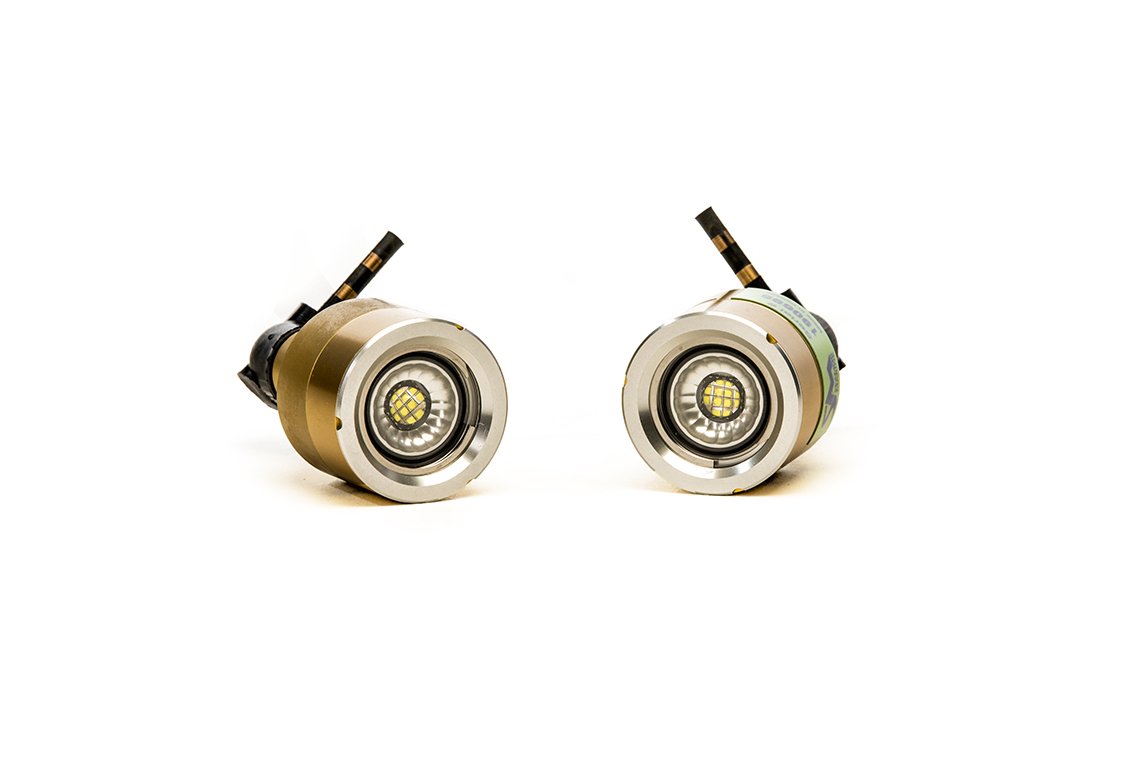

The SEAMOR Marine Auxiliary Light is an easily-installed and positioned independent light source. This compact unit will light up even the darkest corners of the deep. With a 125 degree beam angle and cool white LEDs it allows objects to be seen just how nature intended. Great for task specific operations or used in conjunction with a vehicle’s main lighting system to remove shadows. All standard SEAMOR Marine vehicles come with ports for two Auxiliary lights.
The same rugged and durable construction that SEAMOR uses in its ROVs has been incorporated in to the Auxiliary Light. The Auxiliary Light is pressure tested and rated to 600metres. The entire unit is serviceable by SEAMOR Marine or an authorized dealer. A full one year limited parts warranty is provided, and the various components of the Auxiliary Light can be serviced individually without having to replace the entire product.
High impact sapphire window
Low power requirements with wide voltage range
Cool white LED lighting
Compact and lightweight 120g in air, 65g in water
Serviceable by SEAMOR or authorized dealer
Easily mounted to ROVs or even dive helmets
Aquaculture
Forensics/Search and Recovery
Hydro Dam Inspection
Marine Security
Pipeline Inspection
Potable Water Reservoirs
Recreational
Marine Research
Structural Analysis
Salvage Operations

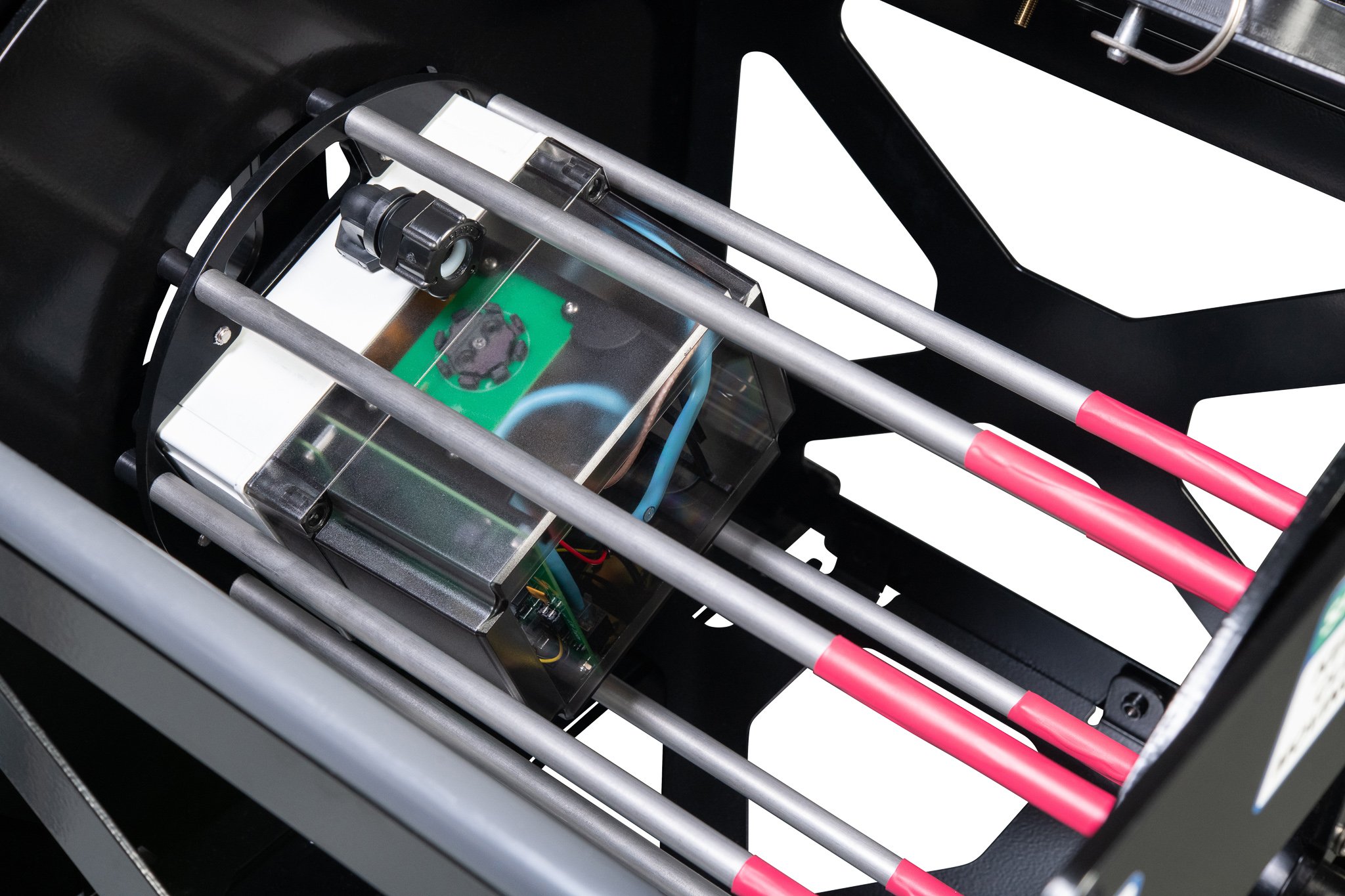

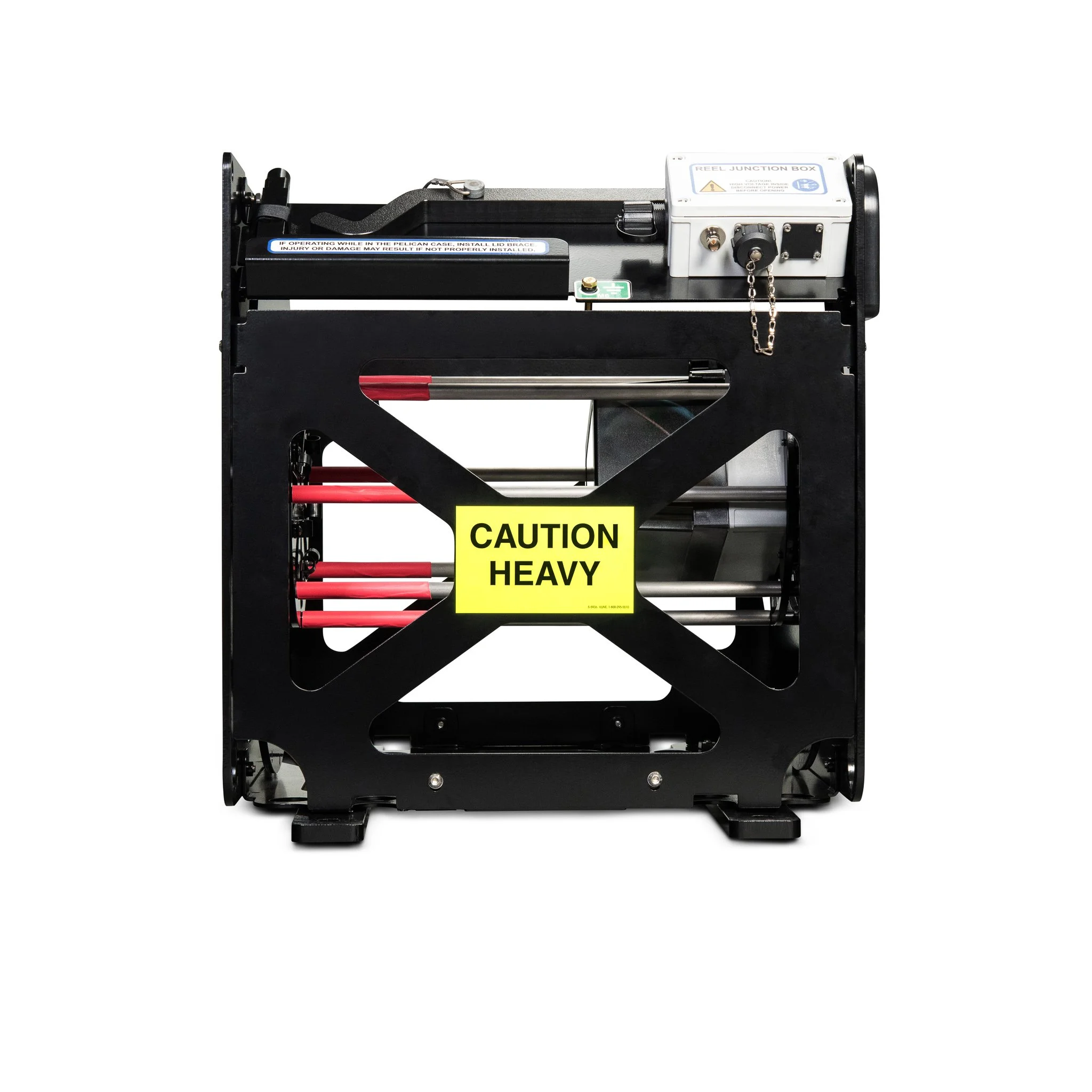

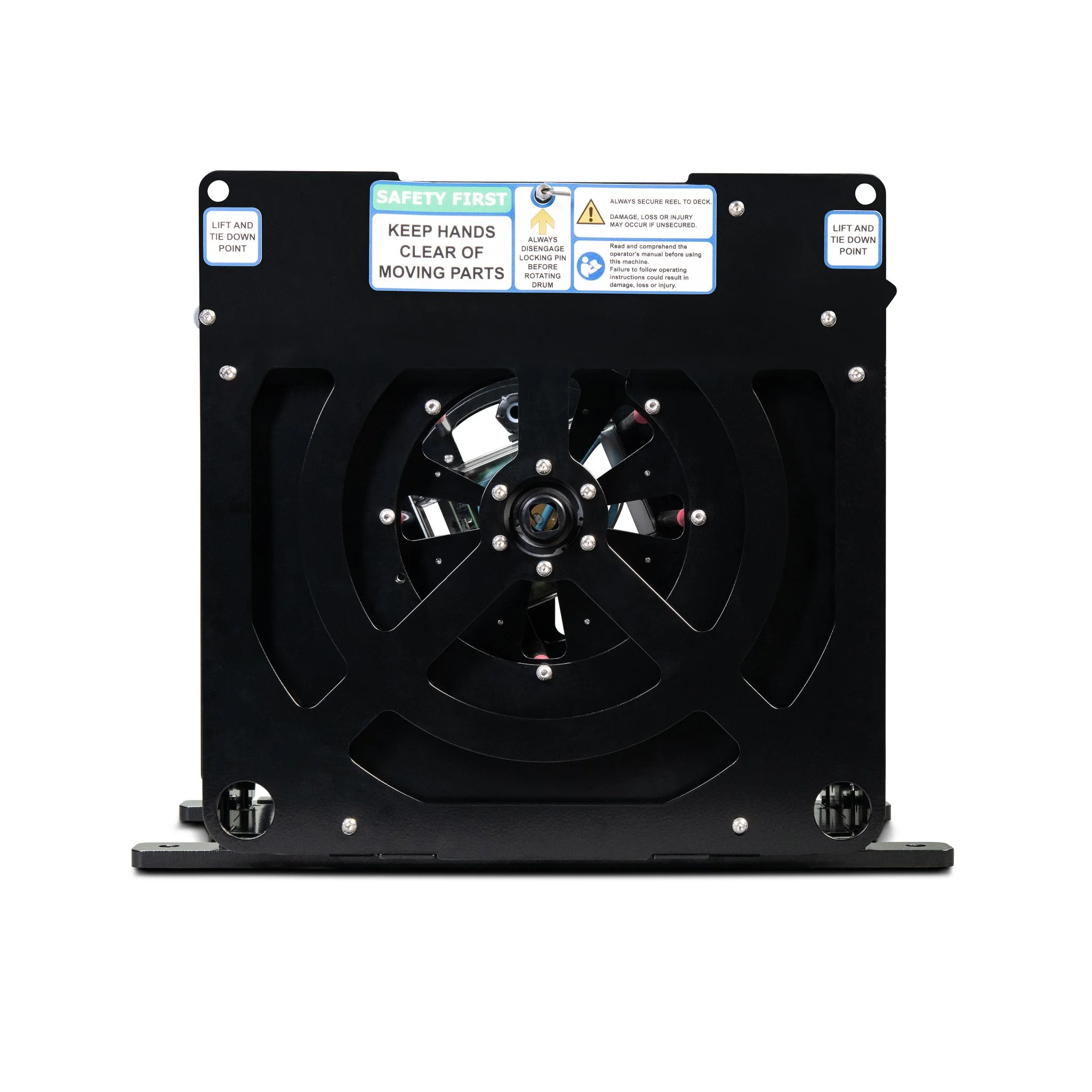

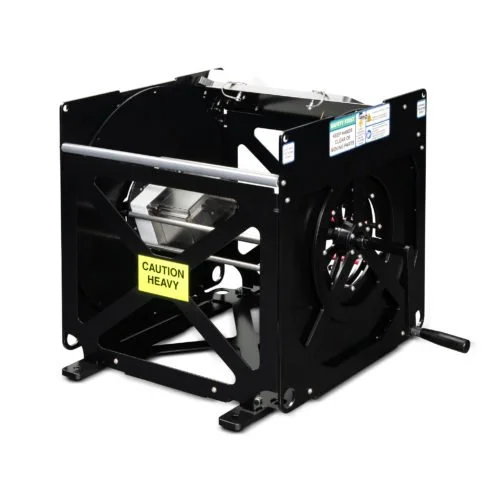

SEAMOR Marine manufactures its own line of durable, high-quality reels like this Sea Otter Reel for tether management and storage. Made from high grade aluminum and stainless steel, our reels can accommodate a variety of tether sizes, slip rings, and incorporate waterproof hub enclosures for tether interface electronics (i.e. fiber optic receivers, multiplexors, etc).
Reels can be supplied open or securely mounted in a rugged Pelican case. A lightweight and compact option for your SEAMOR ROV or to meet your custom tether management needs, a SEAMOR Sea Otter Reel can be counted on for years of reliable performance in any environment. The water resistant hub enclosure can be removed from the reel for servicing without having to unspool the cable.

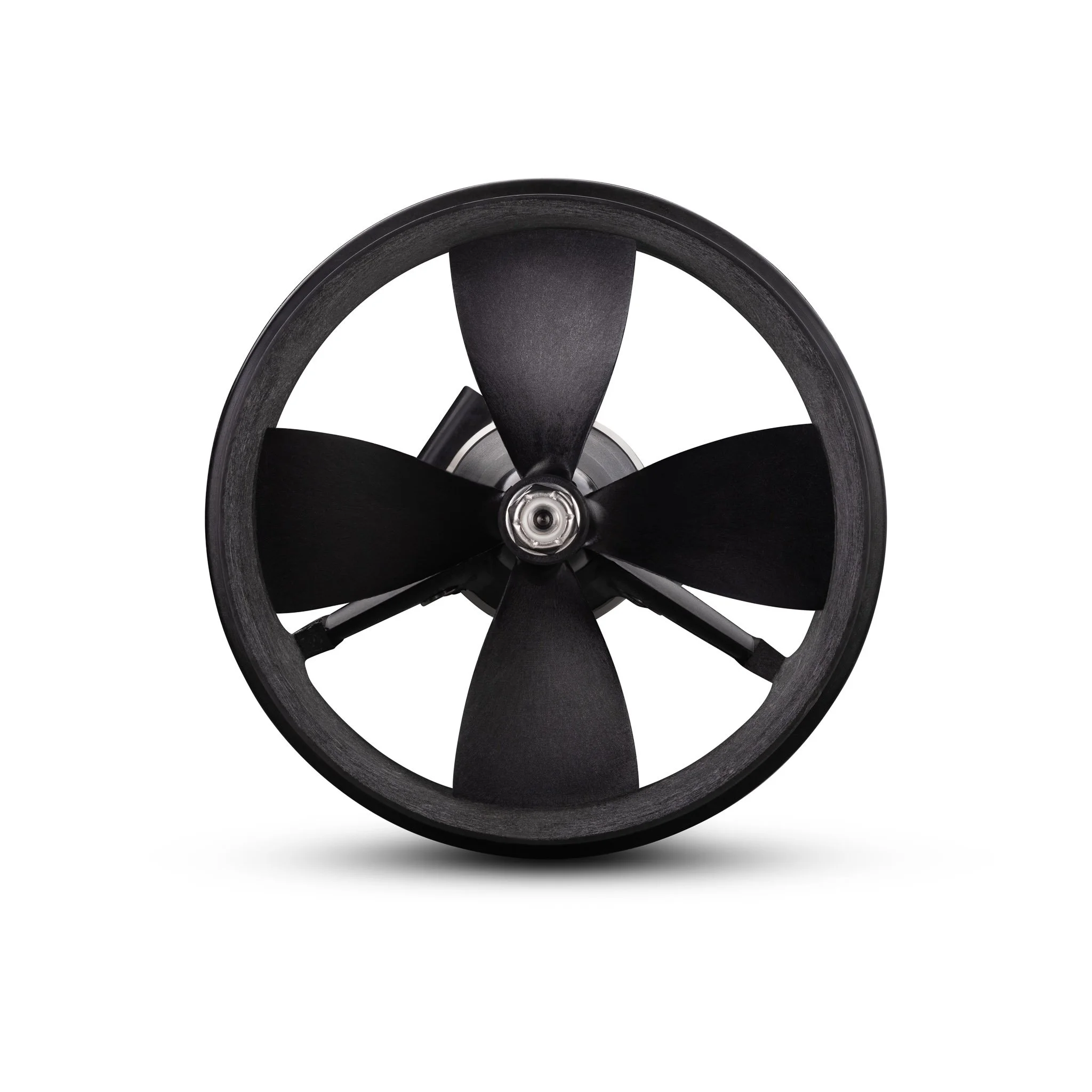

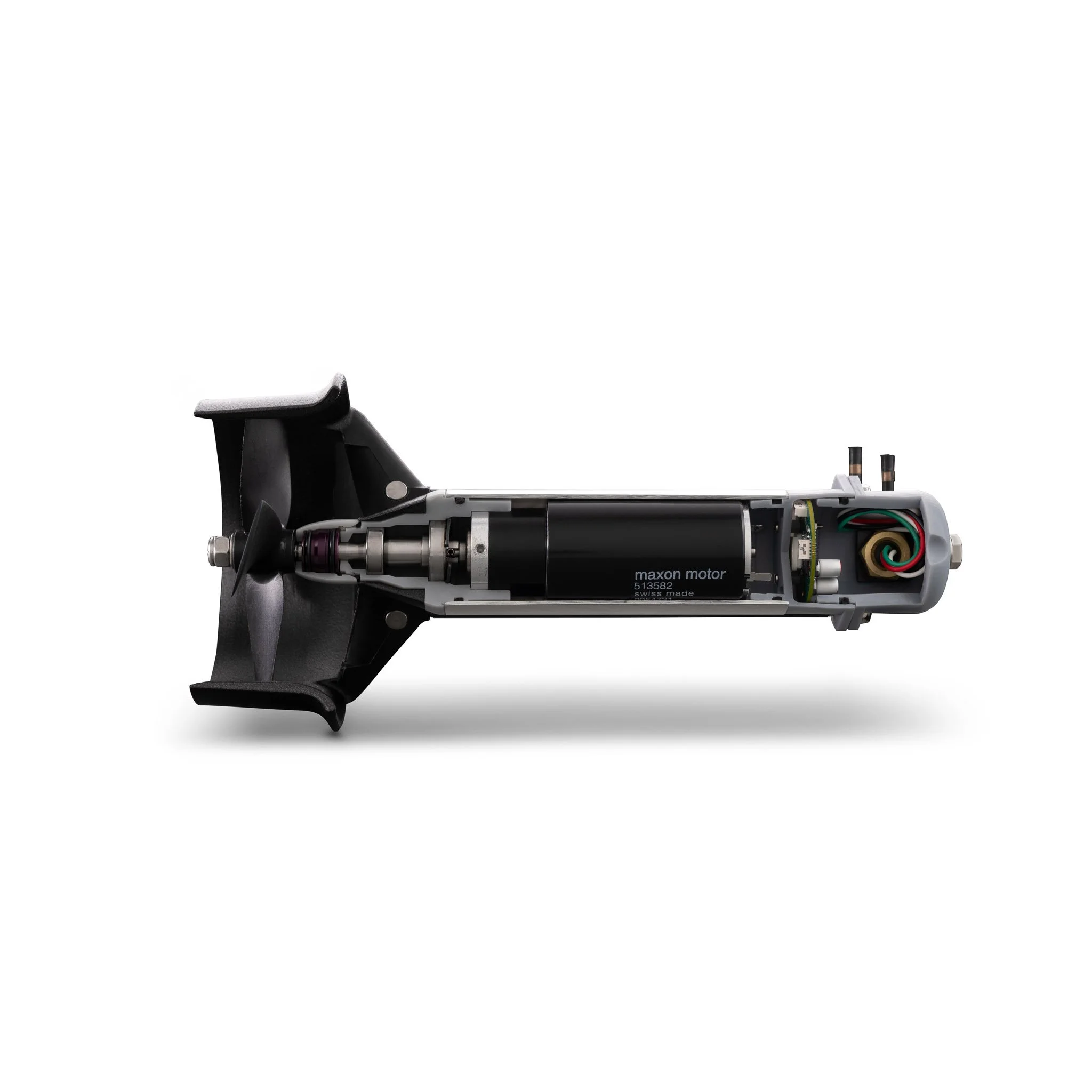

Meet the Sturgeon 200—a revolution in underwater propulsion technology. The Sturgeon 200 thruster delivers exceptional performance while consuming almost half the energy of standard industry alternatives, making it ideal for ROVs, AUVs, and USVs where efficiency matters.

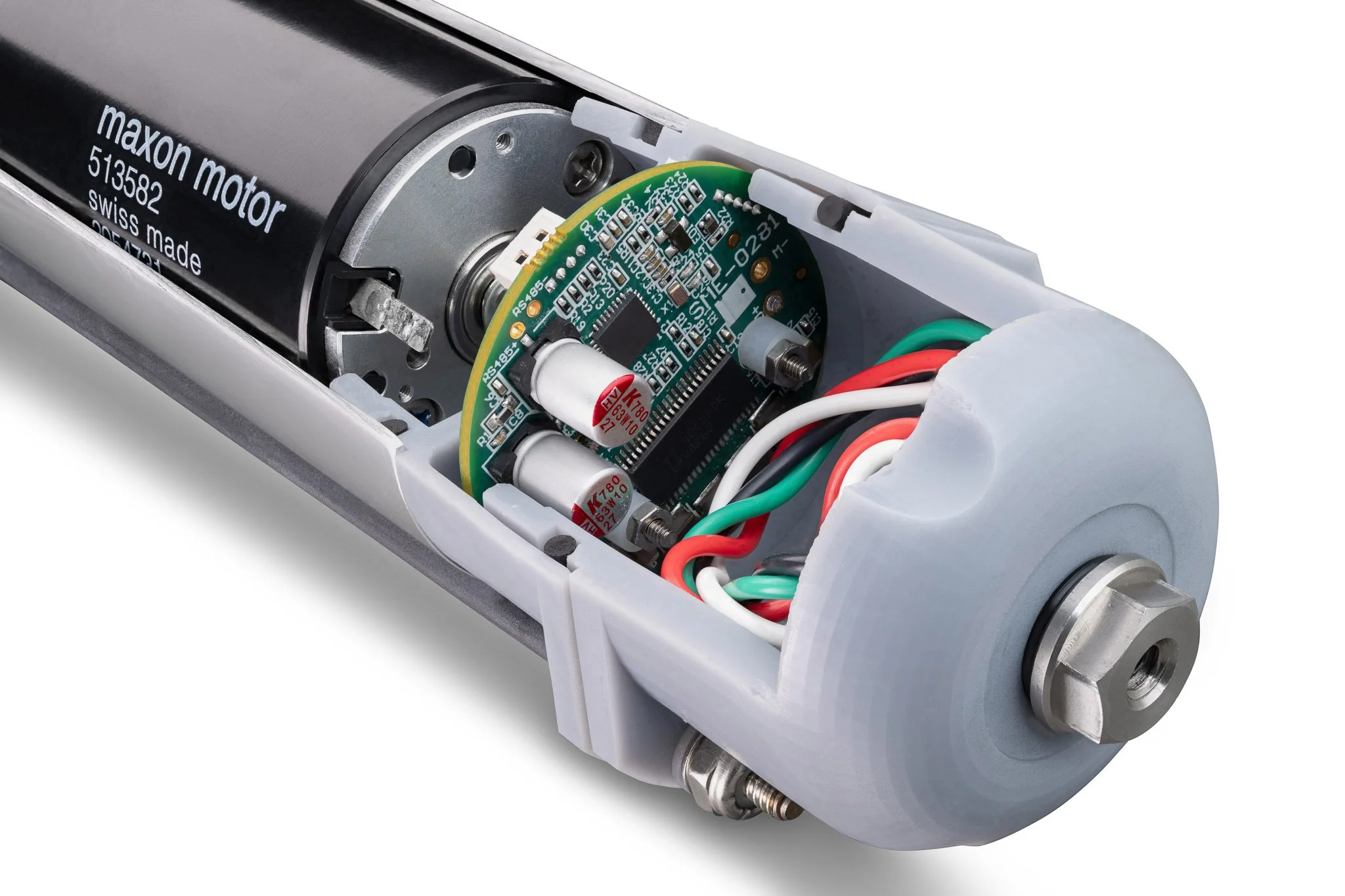

At its heart beats a Swiss-designed Maxon Motor, protected by NASA-grade BAL Seal technology and housed in corrosion-resistant 6061 Aluminum. Reliability meets sustainability through a serviceable design featuring a replaceable shaft seal cartridge—built to last, not to discard.
User-focused innovation includes custom right and left handed props, built-in electronic speed controllers, and real-time performance feedback. The onboard motor control circuitry and RS-485 interface enable seamless integration and rapid deployment. Available in standard 24-volt configuration with 48-volt options, the 200 Watt Sturgeon delivers a perfect balance of power, precision, and efficiency for your underwater applications—all backed by SEAMOR Marine’s renowned product development team.
The Sturgeon 200 thruster has all the power you need, independently distributed, designed for efficiency, integrability, and maintenance accessibility.
Discover how SEAMOR lets you do more, and protect more—with Sturgeon 200: powerful, adaptable, efficient. Just Like its Name.

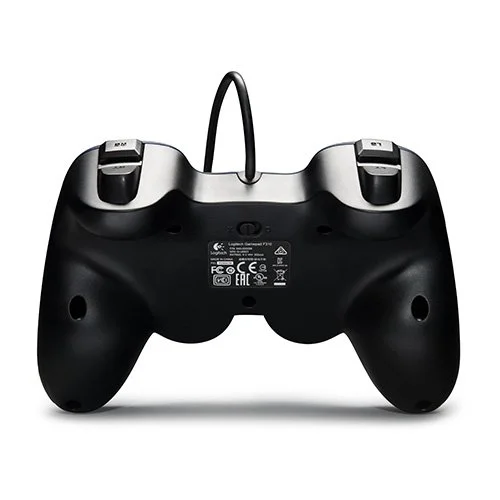

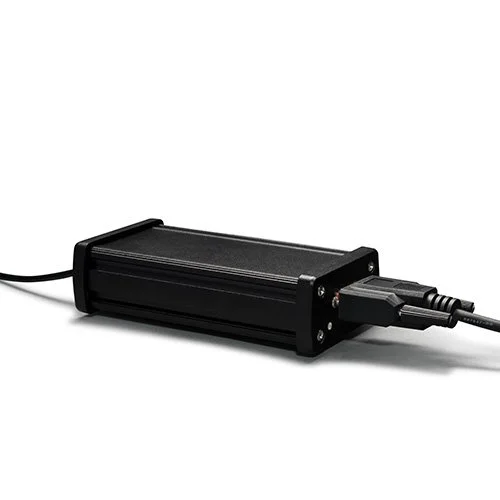

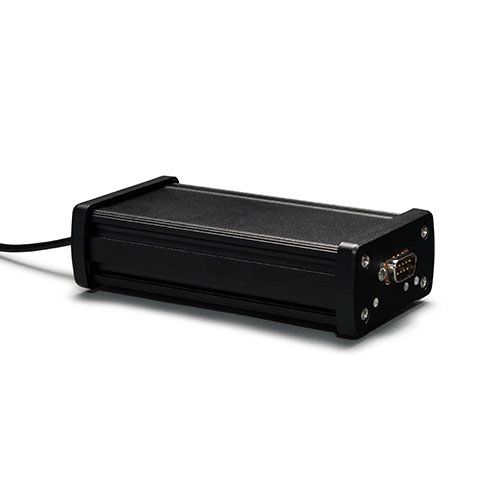

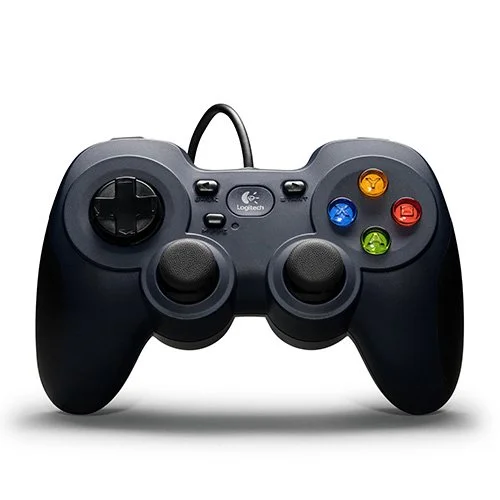

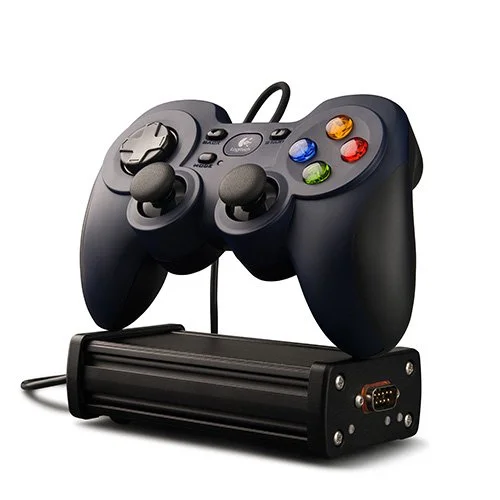

The SEAMOR Marine Handheld Control Pendant is an easy-to-use accessory that offers a more comfortable approach to controlling your SEAMOR Marine ROV. Utilizing a robust and reliable Logitech F310 game controller, the Control Pendant puts cutting-edge control right in the palm of your hand.
Compact
Lightweight
Plug & Play
Easy to switch control between handheld pendant & console panel
Reliable operator interface
Serviceable
Already supported by standard SEAMOR Control Console
Compatible with all SEAMOR ROVs
Aquaculture
Forensics/Search and Recovery
Hydro Dam Inspection
Marine Security
Pipeline Inspection
Potable Water Reservoirs
Recreational
Marine Research
Structural Analysis
Salvage Operations

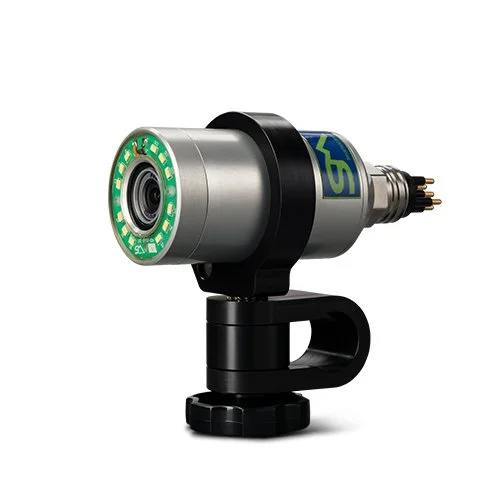

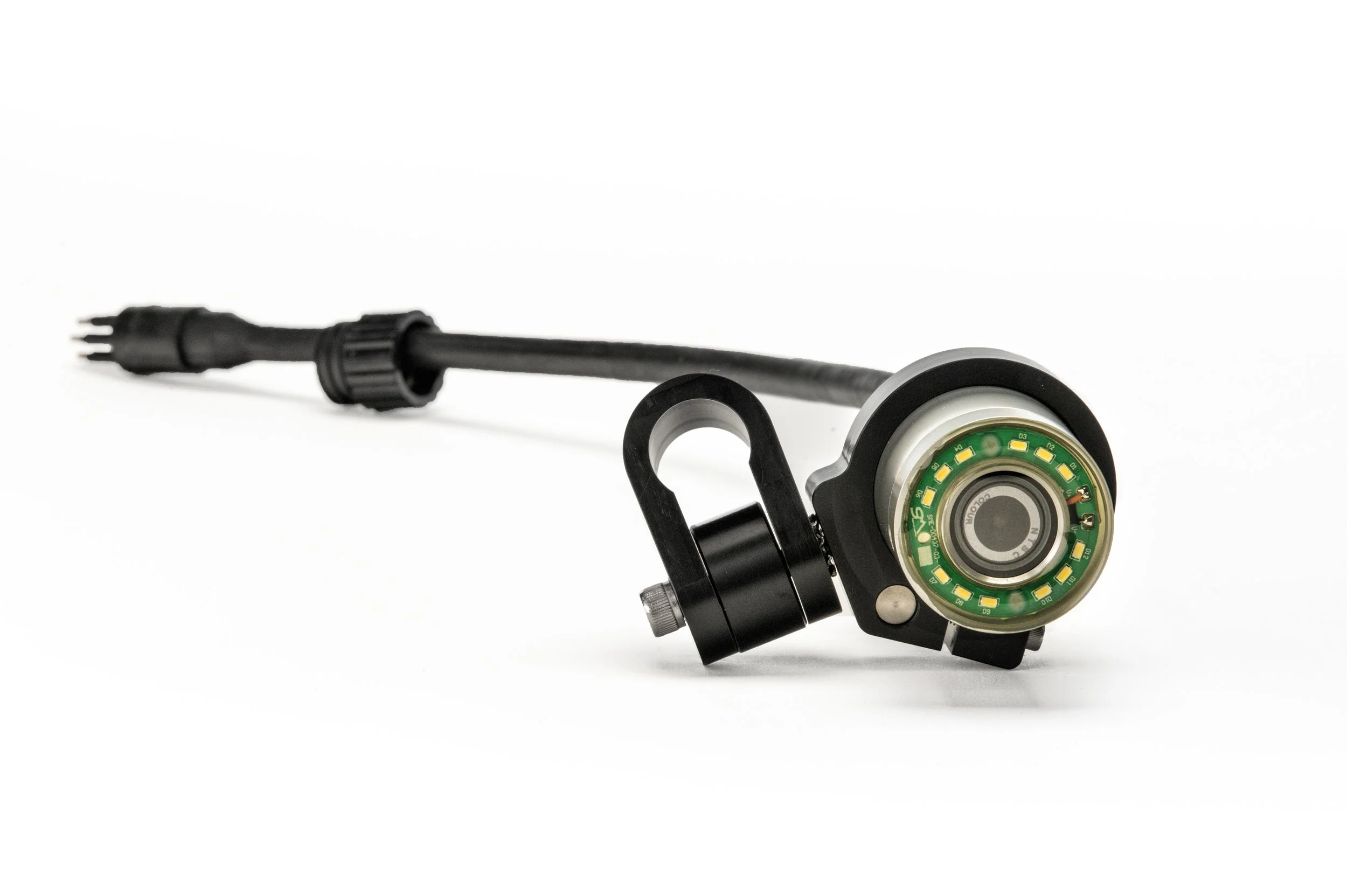

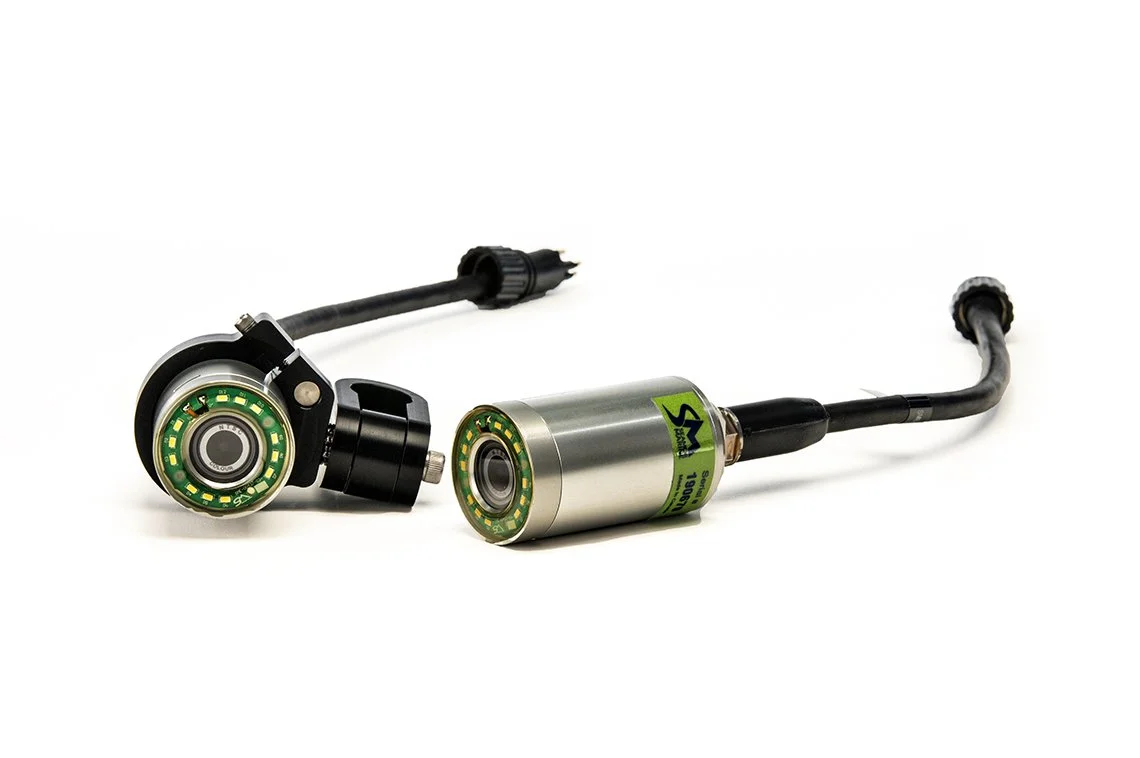

The SEAMOR Marine Auxiliary Camera is an easily- installed and re-positionable standard definition colour or black and white camera. This accessory opens up a world of new possibilities for ROV pilots. Being able to view a different angle, behind the ROV, or close-up on a manipulator will provide even more reliable information for pilots to operate and maneuver their vehicles.
The same rugged and durable design that SEAMOR put into its ROVs has been incorporated into the Marine Auxiliary Camera. All aspects of the camera are pressure tested to 600 metres. The entire unit is serviceable by SEAMOR or an authorized dealer. In contrast to other companies’ cameras which cannot be repaired, the SEAMOR Marine Auxiliary Camera can be repaired – a 1-year limited warranty on failed parts is provided, and further servicing can be specifically targeted to the segment affected, such as the electronics or the camera, without having to repair the entire unit.
Excellent quality camera, full definition black & white or colour; NTSC or PAL
Lower power needs with wide voltage range
Neutral-white LED lighting further enhances the camera’s sensitivity
Super lightweight – can be paired with even the smallest ROV
200 grams in the air, 80 grams in water
Tough camera, depth rated up to 600 metres
Serviceable by SEAMOR Marine or an authorized dealer
Can be easily mounted anywhere on an ROV to meet the user’s needs
Compatible with nearly any other ROV, on a diving helmet, or as a stand-alone (drop camera)
Aquaculture
Forensics/Search and Recovery
Hydro Dam Inspection
Marine Security
Pipeline Inspection
Potable Water Reservoirs
Recreational
Marine Research
Structural Analysis
Salvage Operations

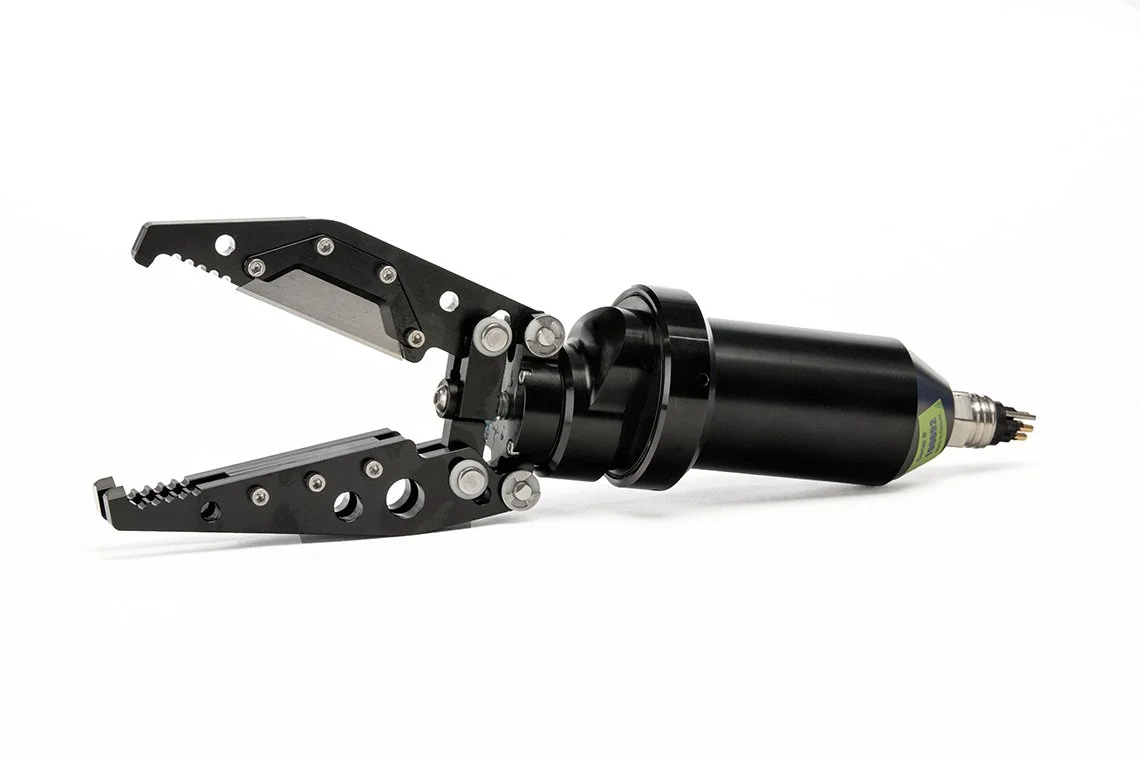

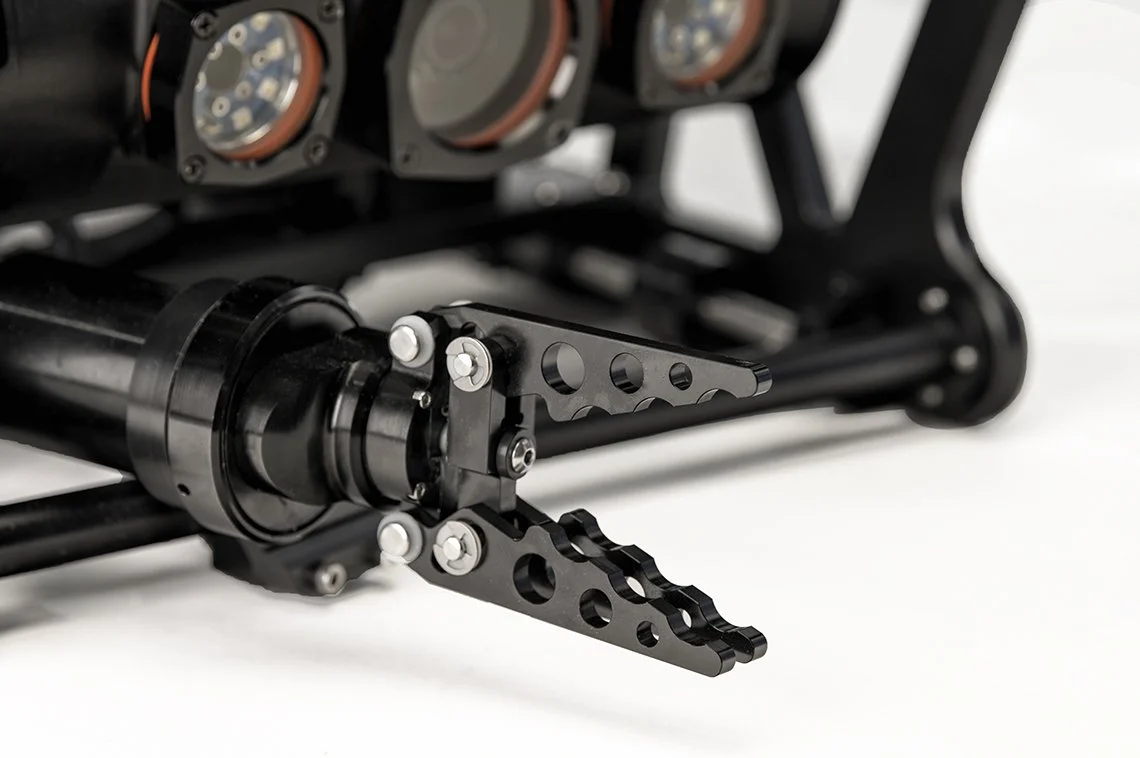

Enhance the capabilities of your ROV with the addition of a SEAMOR Dual Function Gripper.
With the Gripper strategically mounted in view of the ROVs on-board camera the pilot can easily maneuver into a pick up position to retrieve objects up to 90 mm (3.5”) diameter.
The 360 degree continuous wrist rotation allows the jaws to be placed in the optimum gripping position as well as turn objects for placement or to use as a winding tool.
Once the object is firmly in its grip the power of the ROV takes over to bring it directly to the surface or place it in a waiting retrieval basket.
A gripper/cutter attachment capable of cutting cut fishing line, netting and small nylon ropes to free entangled articles is also available.
