PVL Underwater Cutting Torch

$0.00

PVL Underwater Gas Cutting Torch is specially developed for cost-efficient and fast underwater cutting, without constantly changing parts. With the PVL Cutting Torch, the diver is able to cut 20 to 24 meters per hour.

Because the PVL Cutting Torch uses Gas in combination with a specially developed cutting bracket, you can burn up to 1000 meters before the cutting bracket needs to be replaced. Investing in a sustainable PVL Cutting Torch can lead to significant cost savings for your company.

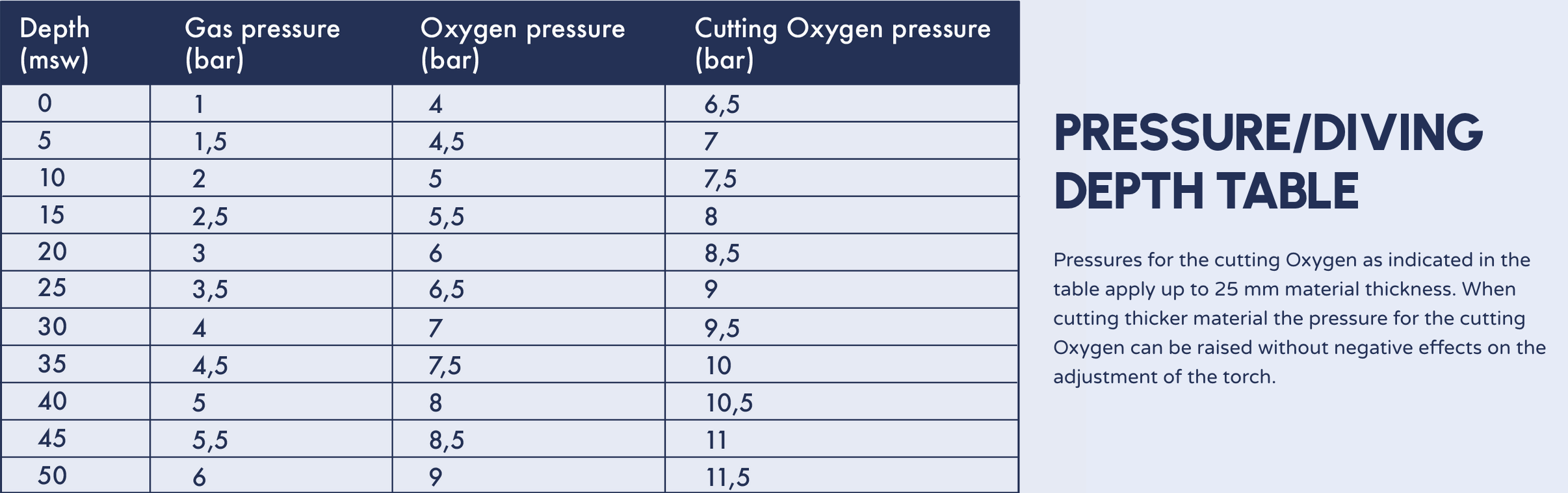

The Underwater Cutting Torch uses Oxygen and Gas as a cutting medium (See table below). It has a three-hose system, which uses one hose for the Gas, one for the Oxygen and one for the cutting Oxygen.

The PVL Cutting torches are delivered in a hard case including the unique in water igniting device.

There are two types of Cutting Torches available:

Model 1 with a 55° cutting head‍ ‍

Model 2 with a 90° cutting head‍ ‍

Your choice of model depends on the diver’s preferences.

PVL Underwater Gas Cutting Torch is specially developed for cost-efficient and fast underwater cutting, without constantly changing parts. With the PVL Cutting Torch, the diver is able to cut 20 to 24 meters per hour.

Because the PVL Cutting Torch uses Gas in combination with a specially developed cutting bracket, you can burn up to 1000 meters before the cutting bracket needs to be replaced. Investing in a sustainable PVL Cutting Torch can lead to significant cost savings for your company.

The Underwater Cutting Torch uses Oxygen and Gas as a cutting medium (See table below). It has a three-hose system, which uses one hose for the Gas, one for the Oxygen and one for the cutting Oxygen.

The PVL Cutting torches are delivered in a hard case including the unique in water igniting device.

There are two types of Cutting Torches available:

Model 1 with a 55° cutting head‍ ‍

Model 2 with a 90° cutting head‍ ‍

Your choice of model depends on the diver’s preferences.

Setup Comparison

PVL CUTTING TORCH

REQUIRED MATERIAL

  • PVL Torch

  • Hoses 100 meter

  • Gas regulator

  • Oxygen O2 per m³

  • Gas mixture per 79ltr

  • Underwater igniter

TRANSPORTATION WEIGHT AND DIMENSIONS

Torch, hoses, regulator & spares
L x B x H = 58 x 78 x 40
Total Weight = 65kg

MAP Gas bottle
L x B x H = 30 x 30 x 127
Bottle weight = 32kg

Gas weight = 34kg

CONSUMPTION PROPORTION

1 Bottle of Gas to 10 bottles of Oxygen

OXY THERMIC CUTTING TORCH

REQUIRED MATERIAL

  • Oxy/Thermic torch

  • Hoses & 50mm cable 100 meter

  • Earth cable 100 meter

  • Welding generator

  • Oxygen O2 per m³

  • Electrodes per box

  • Gas regulator

  • Cut off switch (Knife switch)

TRANSPORTATION WEIGHT AND DIMENSIONS

Torch, cables, switch, regulator & spares
L x B x H = 120 x 100 x 75
Total Weight = 300kg

Thermic electrodes per box
L x B x H = 50 x 10 x 10
Total Weight = 12kg

DC generator (Powcon)
L x B x H = 84 x 51 x 50
Total Weight =100kg

CONSUMPTION PROPORTION

10 Packs of Electrodes to 10 bottles of Oxygen

Diver

Location

Material

Initial Oxygen Pressure

Final Oxygen Pressure

Cylinder Capacity

Total O2 Consumption

Itr Initial Gas Pressure

Final Gas Pressure

Consumed electrodes

Time Began

Time Finished

Total Time

Cutting distance

Cutting Comparison

OXY/THERMIC CUTTING TORCH

Diver 1

Weert, Nethelands

Steel strip 160x1200x25mm

195 bar

50 bar

50 L

7250 L

N/A

N/A

4

12:27

12:33

6 min

48 cm

PVL CUTTING TORCH

Diver 1

Weert, Netherlands

Steel strip 160x1200x25mm

180 bar 120 bar

160 bar 100 bar

40 L, 47 L, 50 L

1740 L

-

-

N/A

11:56

12:02

6 min

154 cm
