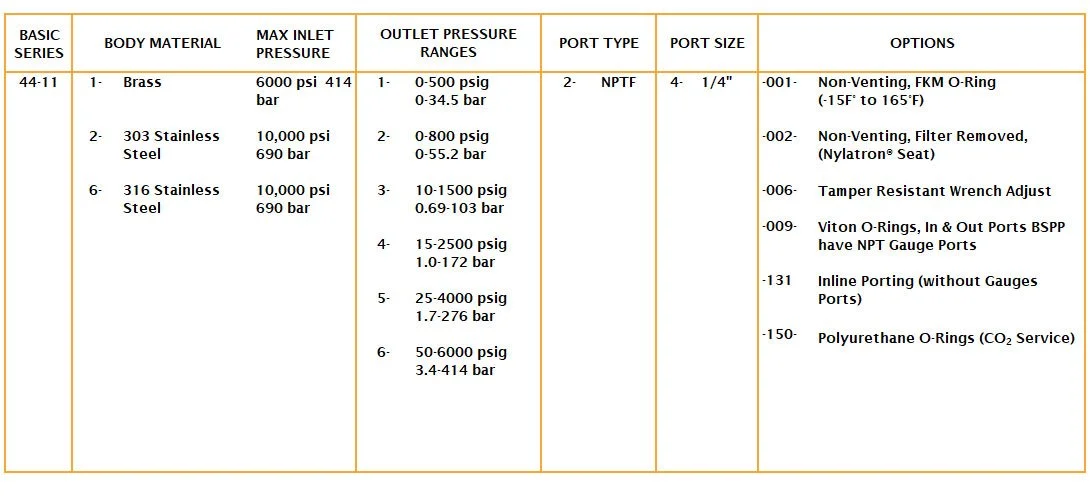

Ordering Parameters
Specifications
Body Material: Brass
Max Inlet Pressure: 6000 psi/414 bar
Outlet Pressure Range: 25-4000 psig/1.7-276 bar
Filter Brass Body: 40 micron (nominal) - Bronze
Port Size: 1/4 in. NPTF
Gauge Ports: Inlet and outlet are standard
Design Proof Pressure: 150% of maximum rated inlet
Leakage: Bubble-tight
Operating Temperature: -30⁰F to +140⁰ F (-34⁰ C to +60⁰ C)
Flow Capacity: Cv = .06
Maximum Operating Torque: 35 in.-lb. (3.95 Nm)
Media Contact Materials:
Main Valve Seat: Polyimide (Vespel®)
Vent Valve Seat: PCTFE
O-Rings: Nitrile, Buna-N
Back-up Rings: PTFE
Remaining Parts: 300 series stainless steel
Cleaning: CGA 4.1 and ASTM G93
Weight: 4.8 lbs. / 2.2 kg
CAUTION: This product is cleaned in accordance with the intermediate level of ASTM-G93 and CGA-4.1 (The intermediate level assures removal of visible particles and combustible residues). System designers must verify the compatibility of the materials used in this product before installation and operation. Specification of materials for oxygen service is the user's responsibility. Consult an expert.
